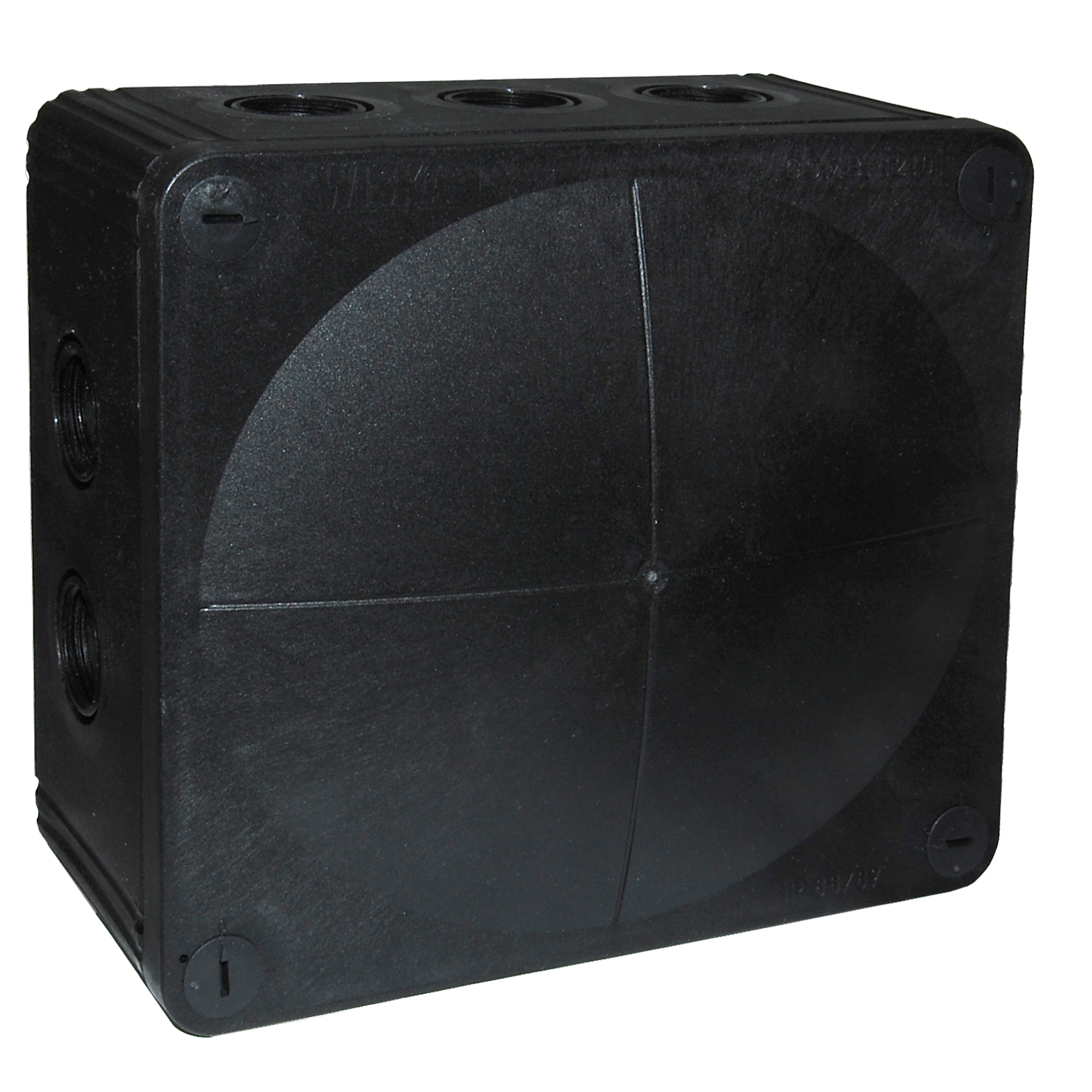

Wiska Combi 1210/5/S Black Weatherproof Junction Box

Wiska Combi 1210/5/S Black Weatherproof Junction Box
Wiska Combi 1210/5/S Black Weatherproof Junction Box
160mm x 140mm x 81mm




Wiska Combi 1210/5/S Black Weatherproof Junction Box

Price:
£14.94 Each
(£12.45 Ex VAT at 20%)

Website under contruction, I'm sorry but currently we cannot take any orders.

Estimated delivery on this item from: £3.96
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: 1010463, 1210/5/S
Product Ref: 10101463

Additional Information:
Wiska Combi 1210/5/S Black Weatherproof Junction Box
Supplied with 3 x Wago 221 connectors - No terminal block


Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66/67
Glow wire test 750 °C
Voltage 690 V
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 160 x 140 x 81mm
WISKA-Order no. 10101463
Type COMBI 1210/5/S

IP66: using the membrane entry
IP67: using the threaded entry together with
ESKV cable gland
Mounting: 4 internal openings outside of the sealing area
Equipment: 10 entries M20 with elastic soft membrane and thread and M25 knockout
4 entries with self-sealing membrane at the bottom (M20)
4 captive cover screws
