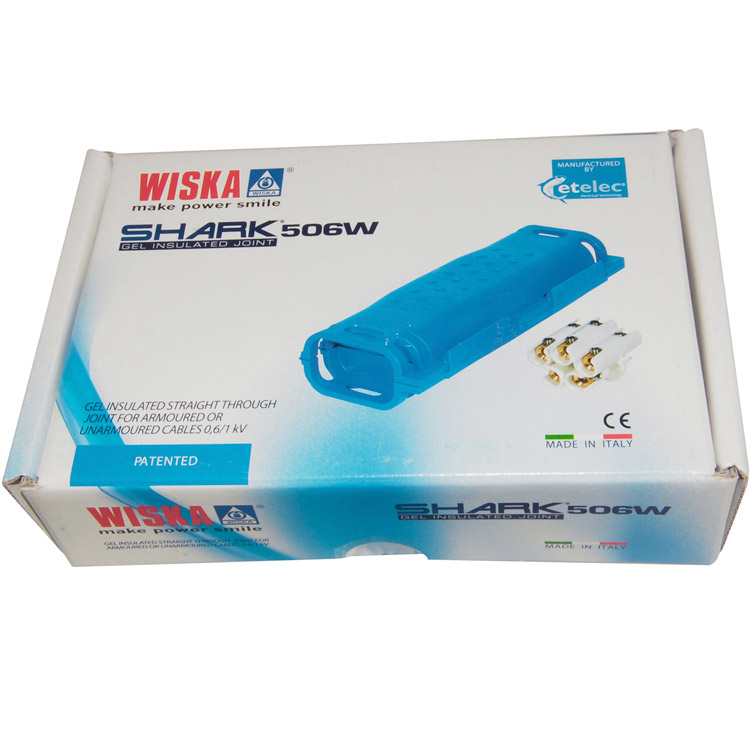

Wiska Shark Gel SWA Watertight 1.5-6.0mm 3-5 Core Joint Kit

Wiska Shark Gel SWA Watertight 1.5-6.0mm 3-5 Core Joint Kit
Wiska Shark Gel Insulated SWA Watertight Joint Kit
1.5-6.0mm 3-5 Core Cable Joint Kit



Wiska Shark Gel SWA Watertight 1.5-6.0mm 3-5 Core Joint KitWiska Shark Gel SWA Watertight 1.5-6.0mm 3-5 Core Joint Kit
Wiska Shark Gel SWA Watertight 1.5-6.0mm 3-5 Core Joint Kit

Price:
£28.73 Each
(£23.94 Ex VAT at 20%)

Website under contruction, I'm sorry but currently we cannot take any orders.

Estimated delivery on this item from: £3.96
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: SH506W, 506W
Product Ref: SH506W

Additional Information:
Wiska Shark Gel Insulated SWA Watertight Joint Kit
1.5-6.0mm 3-5 Core Cable Joint Kit

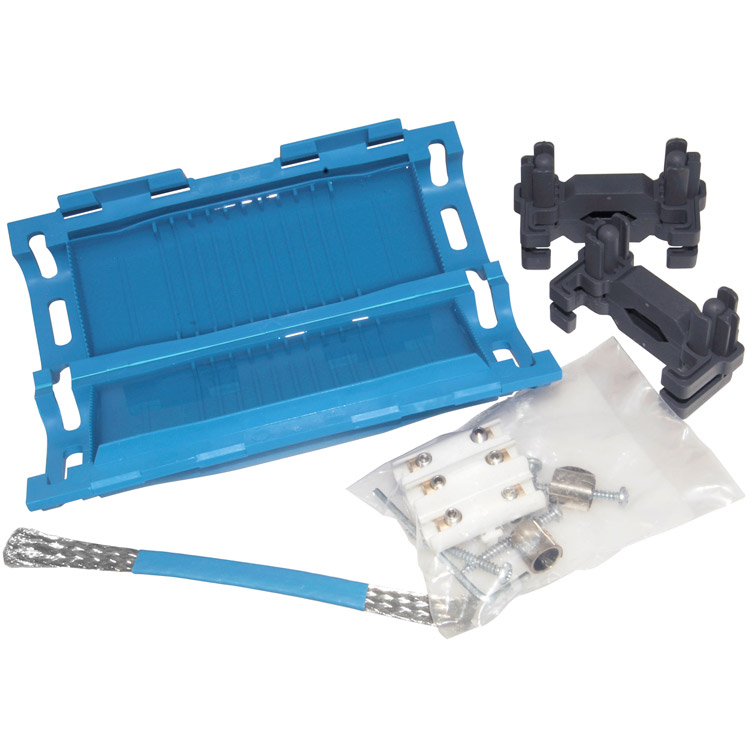

Wiska Gel SWA Cable Joint suitable for sizes 1.5 to 6.0mm cable and between 3 to 5 cores. IP68 Rated Joint. No need for resin, complete sealable cable joint. Kit comes complete with terminal block, allen key, force roll springs, Cable retention clamps and the Gel Insulated Joint.


Protection class to EN 60 529: IP 68
Flame protection: Flame-retardant acc. EN 60695-2-11
Temperature range: -20°C to 90°C
Material: - Housing: polyamide
- Gel: silicone
Equipment: - Straight and branch joint for low voltage cable up to five cores, incl. seperators and cable ties
- Approval acc. EN 50393
Terminals/poles:
SH0506W: Straight jointing -5x1,5-6mm²
Branch jointing: main cable 3-5x1,5-6mm², branch cable 3-5x1,5-2,5mm²

Click Here to Download Wiska Shark Leaflet
