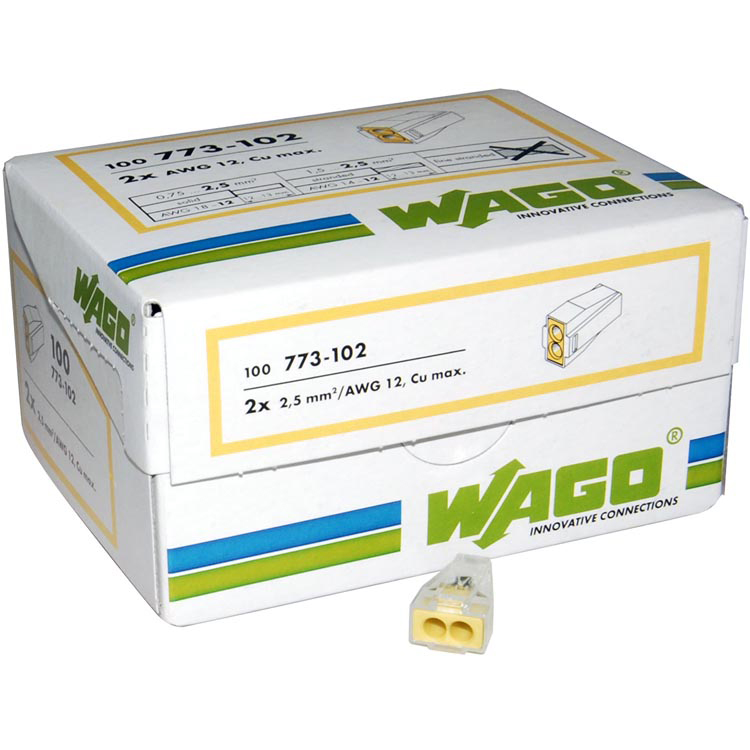

Wago 2.5mm 2 Port Push-Wire Connectors for Junction Boxes

Wago 2.5mm 2 Port Push-Wire Connectors for Junction Boxes (1-2.5mm, 24A)
Wago 2.5mm 2 Port Push-Wire Connectors for Junction Boxes
(.75mm-2.5mm, 24A).




Wago 2.5mm 2 Port Push-Wire Connectors for Junction Boxes

Price: (1 to 99 )
0.17 Each
(0.14 Ex VAT at 20%)
Price: (100 +)
0.12 Each
(0.10 Ex VAT at 20%)

CORONA VIRUS - Websparky is closed until further notice

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: 773-102
Product Ref: WAG773102

Additional Information:
Wago 2.5mm 2 Port Push-Wire Connectors for Junction Boxes
(.75mm-2.5mm, 24A).

Sold individualy - order 100 to get full box discount!
Simply pushing the stripped conductor into the connector makes the connection. The transparent housing provides a visible indication that the conductor is secure. There is a test point in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block left and right. The connector can then be reused.
This product can be purchased individually or more economically in the 100 piece box.

Part No. 773-102
Number of Ports 2
Colour Yellow
Dimensions Width 13.1 mm, Height 9.2mm, Length 19.5mm
Weight 1.847g
Conductor sizes
0.75mm - 2.5mm Solid Core
1.5mm - 2.5mm Stiff Stranded Core
Single pole commoning terminal
Current rating 24A
Voltage rating 0 - 400V / 4KV
Compliant with BS7671 17th Edition

Click Here to Download Instructions PDF
