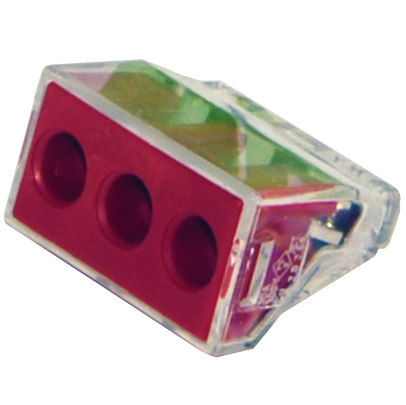

Wago 6mm 3 Port Push-Wire Connectors

Wago 6mm 3 Port Push-Wire Connectors
Wago 6mm 3 Port Push-Wire Connectors




Wago 6mm 3 Port Push-Wire Connectors

Price: (1 to 49 )
0.34 Each
(0.28 Ex VAT at 20%)
Price: (50 +)
0.40 Each
(0.33 Ex VAT at 20%)

CORONA VIRUS - Websparky is closed until further notice

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: 773-173
Product Ref: WAG773173

Additional Information:
Wago 6mm 3 Port Push-Wire Connectors

Sold individualy - order 50 or more to get full box discount!

Simply pushing the stripped conductor into the connector makes the connection. The transparent housing provides a visible indication that the conductor is secure. There is a test point in the base of the housing. To remove the connector simply pull on the conductor whilst twisting the connector block left and right. The connector can then be reused.
This product can be purchased individually or more economically in the 50 piece box.

Part No. 773-173
Number of Ports 3
Colour Red
Dimensions Width 20.1 mm, Height 14.2 mm, Length 25.6mm
Weight 5.0g
Conductor sizes
2.5mm - 6.0mm Solid & Stranded Core
Current rating 41A
Voltage rating 240 - 440V
Compliant with BS7671 17th Edition

Click Here to Download Instructions PDF
