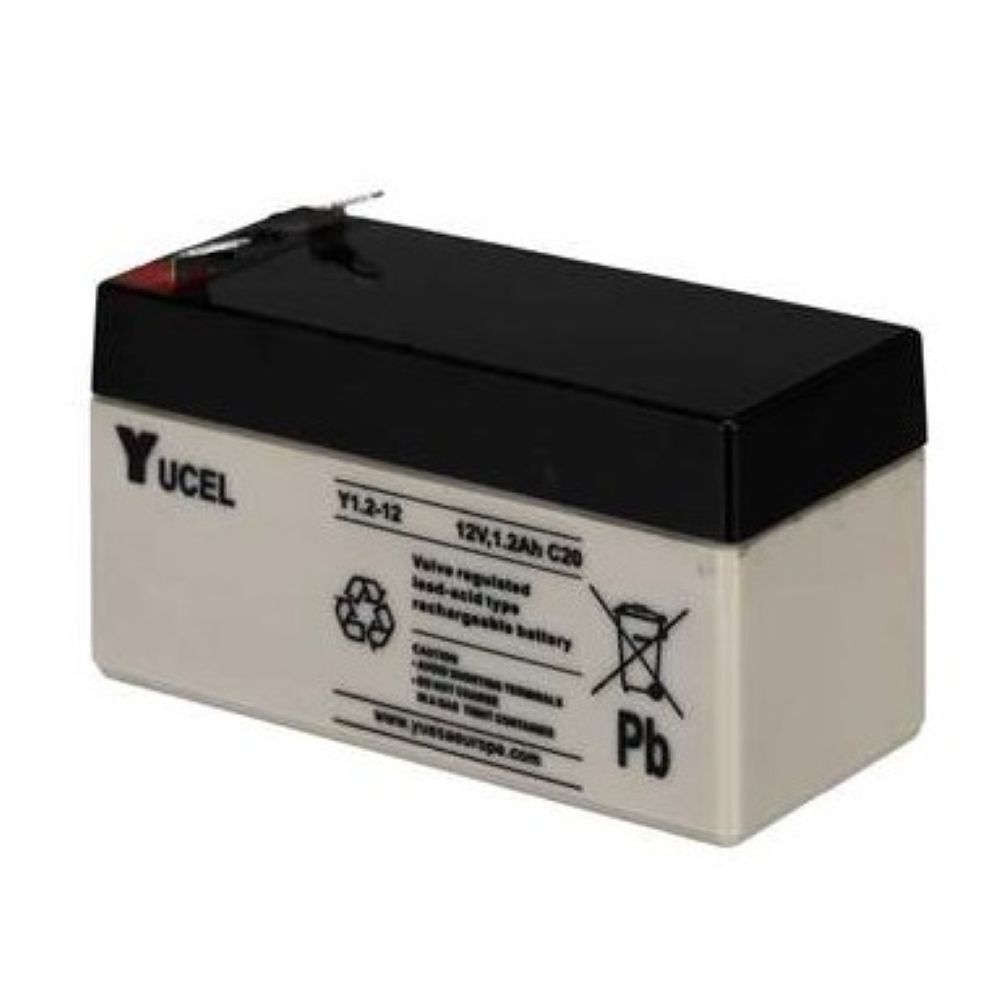

1.2Ah 12V Sealed Lead Acid Rechargable Battery

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
1.2Ah 12V Sealed Lead Acid Rechargable Battery

12VDC battery, offering excellent performance, durablity and reliability for Stand-by applications in security systems, Emergency Lighting, Uninteruptable power supplies and more!


Nominal voltage 12 V
20-hr rate Capacity to 1.75VPC at 20°C 1.2 Ah
10-hr rate Capacity to 1.75VPC at 20°C 1.11 Ah
Length 97 (±1) mm
Width 43 (±1) mm
Height 52 (±1) mm
(height over terminals) 58 (±2) mm
Mass (typical) 0.57 kg
FASTON (Quickfit / release) 4.75 mm
Storage
Charge
Discharge LAYOUT
Capacity loss per month at 20°C (approx) 3 %
Standard Option
Flame retardant option (FR)
13.65 (±1%) V
2.275 (±1%) V/cell
Float Charge voltage temperature correction factor
(for variations from the standard 20°C) -3 mV/cell/°C
14.5 (±3%) V
2.42 (±3%) V/cell
Cyclic Charge voltage temperature correction factor
(for variations from the standard 20°C) -4 mV/cell/°C
Float charge current limit No limit A
Cyclic (or Boost) charge current limit 0.3 A
1 minute 12 A
Internal resistance N/A mO 3RD PARTY CERTIFICATIONS
Short-Circuit current N/A A ISO 9001 - Quality Management Systems
ISO 14001 - Environmental Management Systems
Measured at 1 kHz 90 mO EN 18001 - OHSAS Management Systems
UNDERWRITERS LABORATORIES Inc.
Refer to the technical manual YUCEL
STANDARDS
EUROBAT Classification: Standard Commercial 3 to 5 years IEC61056
Yuasa design life @ 20°C up to 5 years
ALL DATA IS SUBJECT TO CHANGE WITHOUT NOTICE
Issue No.: V.1 / Issue Date: July 2010
Yucel-Series - Valve Regulated Lead Acid Battery
-20°C to +60°C
ABS (UL.94:HB)
ABS (UL94:V0)
