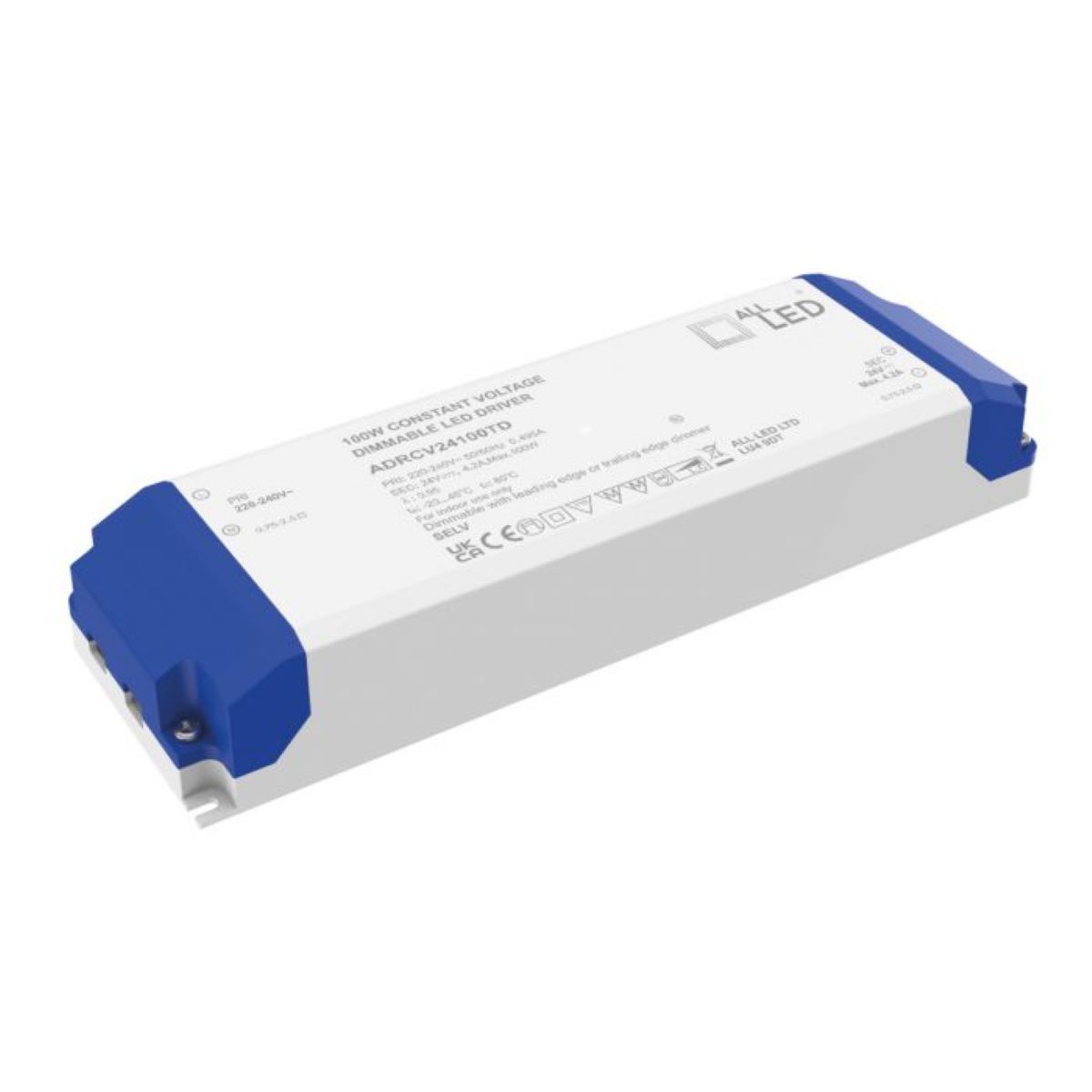

100W 24V DC Constant Voltage Triac Dimmable LED Driver

100W 24V DC Constant Voltage Triac Dimmable LED Driver
ALL LED 100W 24V DC Constant Voltage Triac Dimmable LED Driver




100W 24V DC Constant Voltage Triac Dimmable LED Driver

Price:
£56.22 Each
(£46.85 Ex VAT at 20%)

Estimated delivery on this item from: £3.96
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: ADRCV24100TD
Product Ref: ADRCV24100TD

Additional Information:
100W 24V DC Constant Voltage Triac Dimmable LED Driver

The Drive24TD 24V constant voltage driver is a reliable and versatile choice for powering 24V LED lighting systems.
It is compatible with both trailing and leading-edge dimmers, allowing for seamless integration with various dimming systems.
The driver is built with a tough polycarbonate body, ensuring durability and long-term performance.
Its loop-in loop-out design simplifies installation, while the large terminals enable easy and secure wiring connections.
The driver offers comprehensive protection features, including overload protection, no-load protection, short circuit protection, thermal protection, and overcurrent protection.
These safety measures ensure the longevity and safe operation of the driver and connected LED lights.
The Drive24TD driver is a reliable option for constant voltage LED lighting applications.


24V Constant Voltage
Available in 25W, 50W and 100W
Dimmable - Compatible with Trailing & LeadingEdge Dimmers
Large Terminals
Overload, No Load, Short Circuit, Thermal &Overcurrent Protection
IP20

PRODUCT FEATURES
TECHNICAL SPECIFICATIONS
100W 24V DC Constant Voltage
Triac Dimmable LED Driver
PRODUCT CODE ADRCV24100TD
Operating Voltage 220-240V AC
Operating Current (A max) 0.495
Max Output Power 5 - 100W
Output Current (Max) 4.2A
Output Voltage 24V DC
Power Factor 0.95
Efficiency % 88%
No Load Power (W) <0.5W
Class II
Body Material Polycarbonate
Frame Colour White
Switching Cycles 100,000
Ingress Protection IP20
Ambient Operating Temperature (°C) -20°C ~ +45°C
Input Frequency (Hz) 50-60Hz
Guarantee 5 Years
Dimmable Yes
Dimming Mode (Trailing or Leading) Trailing & Leading
Output Type Constant Voltage
Lifetime 50,000 Hrs
Start Up Time <0.5s
Inrush Current A pk (TH & ms) 20 (th=100µs)
• Compatible With Trailing & Leading Edge Dimmers
• Tough Polycarbonate Body
• Loop-In - Loop-Out Design
• Large Terminals
• Overload Protection
• No Load Protection
• Short Circuit Protection
• Thermal Protection
• Overcurrent Protection

Click Here to Download PDF brochure for this product
