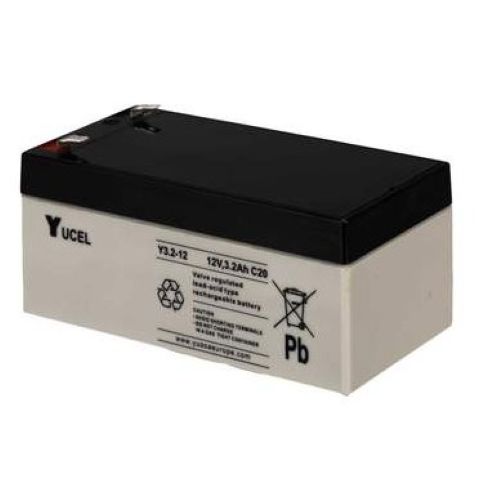

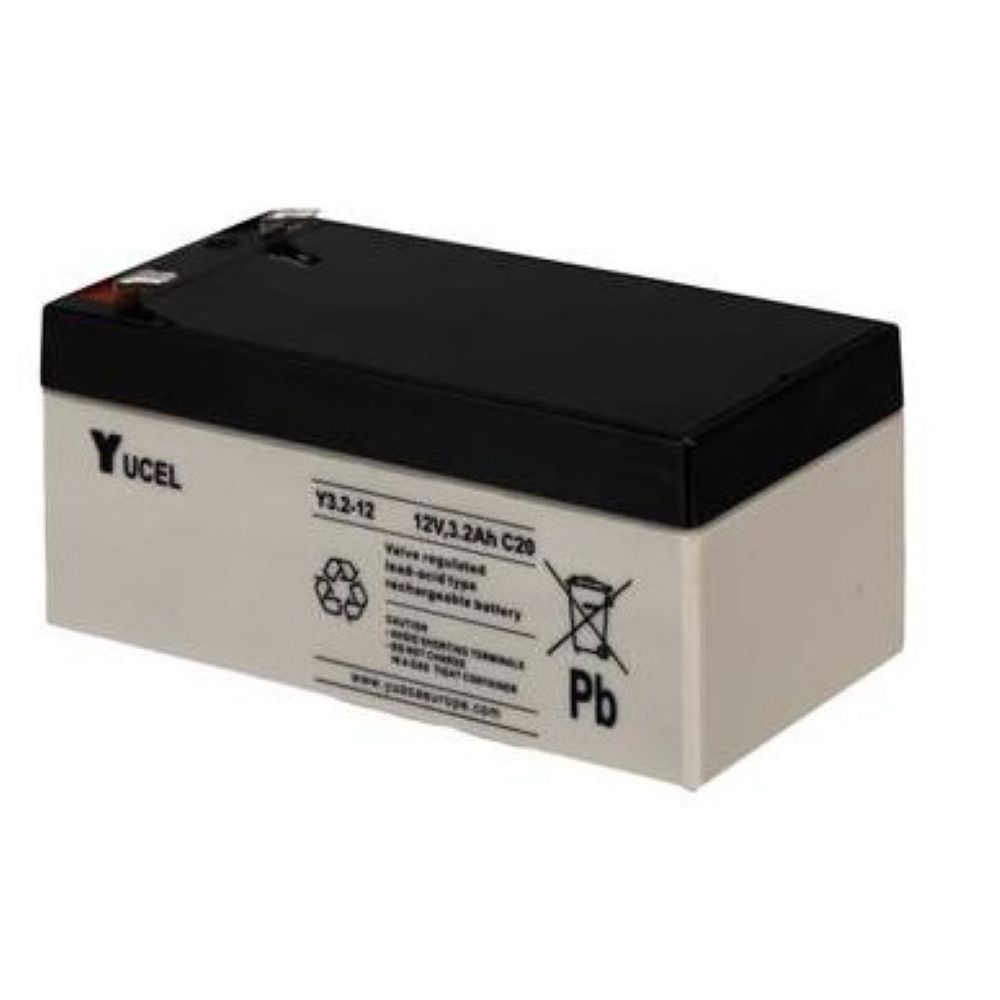

3.2 Ah 12V Sealed Lead Acid Rechargable Battery

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
3.2 Ah 12V Sealed Lead Acid Rechargable Battery

Maintenance Free Rechargable Battery
Commonly used in Fire & Intruder Alarms.
Also used as Fishing Bait Boat Batteries

Nominal voltage 12 V
20-hr rate Capacity to 1.75VPC at 20°C 3.14 Ah
10-hr rate Capacity to 1.75VPC at 20°C 2.96 Ah
Length 134 (±1) mm
Width 67 (±1) mm
Height 60.5 (±1) mm
(height over terminals) 66.5 (±2) mm
Mass (typical) 1.35 kg
FASTON (Quickfit / release) 4.75 mm
Storage
Charge
Discharge LAYOUT
Capacity loss per month at 20°C (approx) 3 %
Standard Option
Flame retardant option (FR)
13.65 (±1%) V
2.275 (±1%) V/cell
Float Charge voltage temperature correction factor
(for variations from the standard 20°C) -3 mV/cell/°C
14.5 (±3%) V
2.42 (±3%) V/cell
Cyclic Charge voltage temperature correction factor
(for variations from the standard 20°C) -4 mV/cell/°C
Float charge current limit No limit A
Cyclic (or Boost) charge current limit 0.785 A
1 minute 31 A
