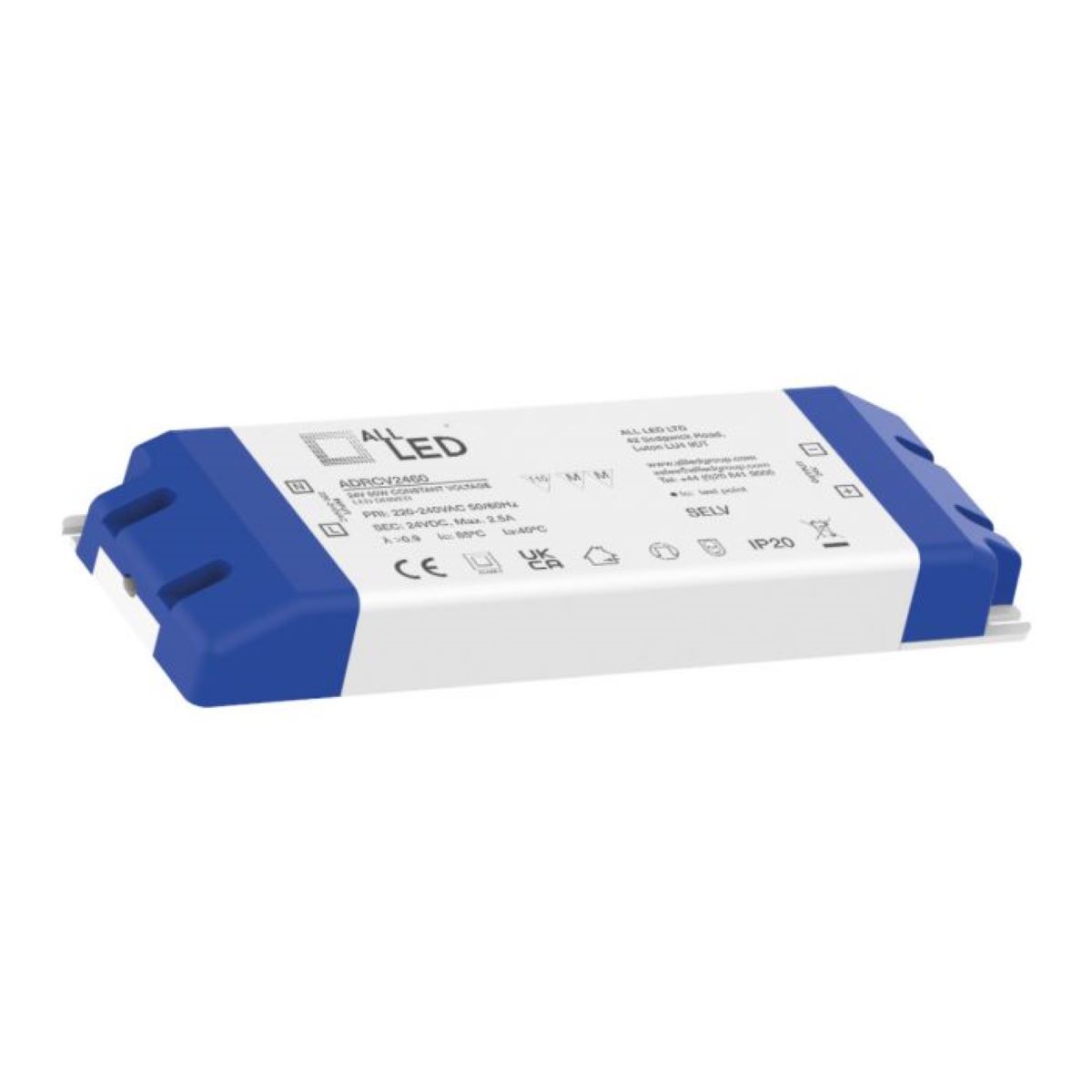

60W 24V DC Constant Voltage LED Driver

60W 24V DC Constant Voltage LED Driver
ALL LED 60W 24V DC Constant Voltage LED Driver




60W 24V DC Constant Voltage LED Driver

Price:
£17.76 Each
(£14.80 Ex VAT at 20%)

Estimated delivery on this item from: £3.96
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: ADRCV2460
Product Ref: ADRCV2460

Additional Information:
Drive24TD 24V DC Constant Voltage LED Driver 60W
The Drive24 constant voltage driver is a reliable power supply for constant voltage LED lighting systems.
Designed as a non-dimmable driver, it provides a consistent voltage output for the connected LEDs.
The driver features a sturdy and durable moulded polycarbonate body, ensuring longevity and protection.
It incorporates overload protection, safeguarding against excessive current and preventing damage to the LEDs.
The regulated output ensures a stable voltage level for reliable and consistent lighting performance.
The driver also includes a thermal cut-out feature, which automatically shuts down the system in case of overheating.
Furthermore, it is SELV (Safety Extra-Low Voltage) rated, meeting safety standards for low-voltage applications.
The Drive24 driver offers a secure and efficient power solution for constant voltage LED lighting setups.

24V Constant Voltage
Zero Load Function
Non-Dimmable
SELV, Over Voltage Protection, Over Current Protection, Overload Protection, Thermal Cut-out, Short Circuit Protection
IP20

Operating Voltage 220-240V AC

Operating Current (A Max) 0.4A

Max Output Power 0 - 60W

Output Current (Max) 2.5A

Output Voltage 24V DC

Power Factor >0.9

Efficiency % 89%

No Load Power (W) <0.5W

Dimmable No

Class II

Body Material Polymer

Frame Colour White (Blue Caps)

Switching Cycles >100,000

Ingress Protection IP20

Ambient Operating Temperature (°C) -20°C ~ +50°C

Input Frequency (Hz) 50/60Hz

Guarantee 5 Years

Lifetime 30,000 Hrs

Displacement Factor >0.9

Inrush Current 39.8A, 0.84µs

Over Temperature Protection Yes

Overload Protection Yes


No Load Protection Yes
