Click Grid Pro 1 Module Mounting Kit

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:

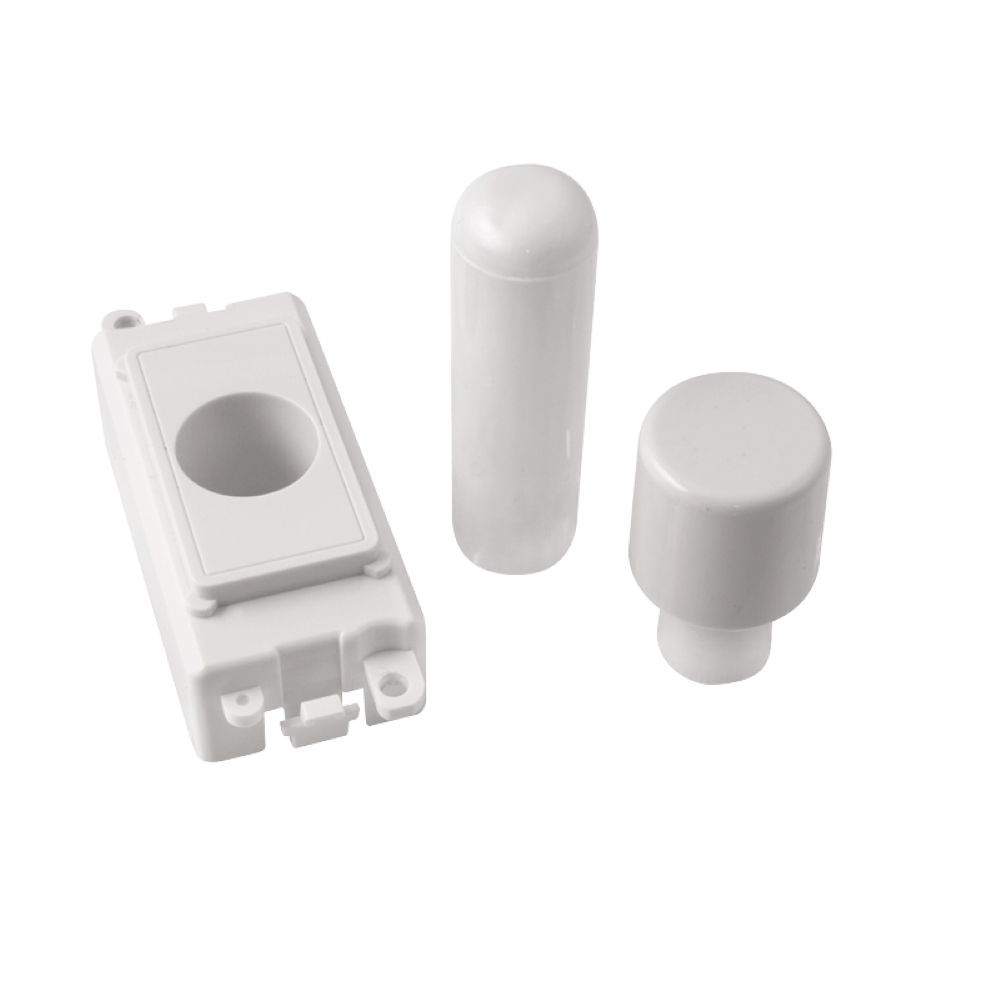

Click Grid Pro 1 Module Mounting Kit White

Dimensions (mm) 24.5 (W) x 50 (H)
Colour Polar White
Insert Colour Polar White
Materials Body & Insert: Nylon Control Button: Nylon
Anti Microbial Certified No
Minimum Back Box Depth (mm) 47
Ingress Protection IP20
Operational Temperature (°C) -5 to +40

Interchangeable Plates and Modules
GridPro® front plates and modules offer a flexible, comprehensive solution for grid wiring accessories.
With a wide range of modules and finishes to choose from, our 20A-rated grid switch modules are ideal for both domestic and commercial applications.
The GridPro range will seamlessly complement your existing Click installation, as it was specifically designed to match our existing ranges of Click wiring accessories.
Screw-In Modules
The screw attachment feature allows the modules to be assembled on 1-4 gang GridPro® frontplates without a yoke.
Standard Back Boxes
A unique feature of 1-4 gang GridPro® frontplates is that any British Standard BS4662 flush mounted back boxes can be used. This is because our 1-4 gang GridPro frontplates do not require a yoke!
Clip-On Modules
When a yoke is required on the multi-tier GridPro® frontplates the module can be assembled using the clip attachment, which secures them to the metal yokes. Clip on grid modules can be used on 6-24 gang GridProfrontplates excluding the screwless Definity™ GridPro frontplates, which have their own dedicated inserts.
No Yoke
The GridPro® modules are secure to the back of the 1-4 gang GridPro® front plates via the screw feature on the modules*. The benefit of not using a yoke is that it allows the installer to use standard back boxes.
*Excluding the screwless Definity™ GridPro front plates, which have their own dedicated inserts.
