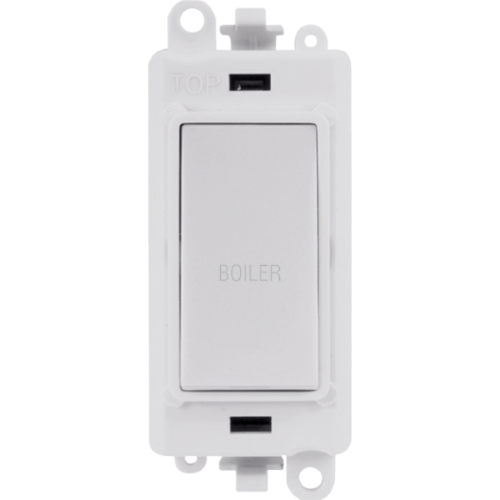

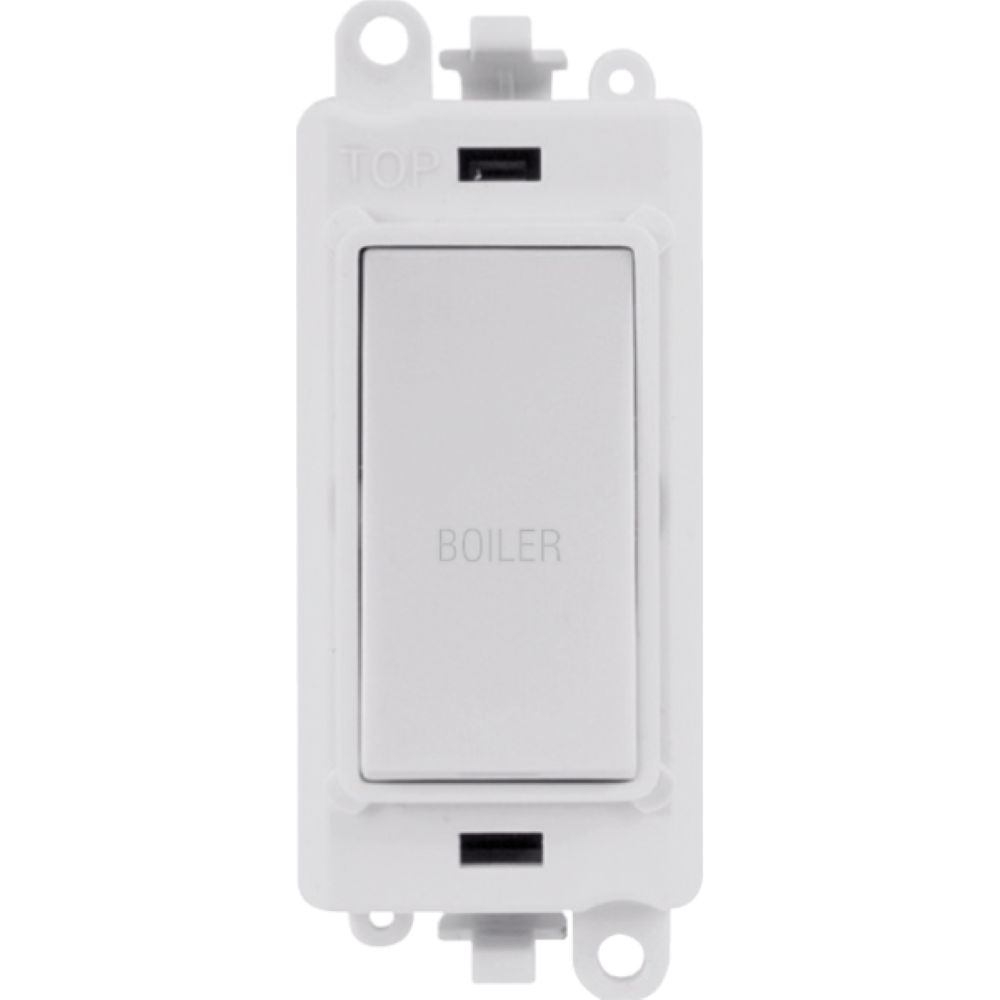

Click Grid Pro 20AX DP Switch Module - Boiler

Estimated delivery on this item from: £4.20

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
Click Grid Pro 20AX DP Switch Module - Boiler

Dimensions (mm) 24.5 (W) x 50 (H) x 22.5 (D)
Colour Polar White
Insert Colour Polar White
Switch Finish Polar White
Materials Body & Insert: Nylon Switch: Urea
Switch Cover: Stainless Steel Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Contacts: Silver “on-lay” Copper / Brass
Anti Microbial Certified No
Operating Voltage (AC) 250 Frequency (Hz) 50
Inductive Load Rating (AX) 20
Load Rating Comments Suitable for Fluorescent or Inductive Loads
Termination Type Screw
Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.2
Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
Double Pole Switch Yes
Minimum Back Box Depth (mm) 25 (35 Flat Plate)
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
