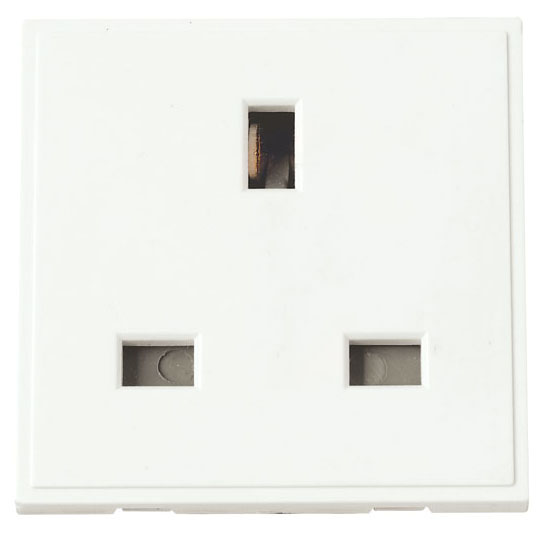

Click Media 13 Amp Socket Outlet Module White

Click Media 13 Amp Socket Outlet Module White
Click Media 13 Amp Socket Outlet Module White




Click Media 13 Amp Socket Outlet Module White

Price:
2.88 Each
(2.40 Ex VAT at 20%)

Estimated delivery on this item from: 3.50
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: MM010WH
Product Ref: MM010WH

Additional Information:
Click Media 13 Amp Socket Outlet Module White

General Information
Dimensions 50mm (W) x 50mm (H) x 25.6mm (D)
Module Finish Polar White
Materials Cover & Housing: Polycarbonate Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Internal Busbars: Formed Pressed Brass
Maximum Voltage 250V~ 50Hz
Load Rating 13A
Terminal Size 5mmø
Terminal Torque 2.0Nm
Terminal Capacity 3 x 2.5mm2
or 2 x 4mm2
Ingress Protection IP20
Back Box Depth Dependent on Plate Used
Termination Type Screw
Operational Temperature -5°C to +40°C

Standards BS 1363-2: 2016 +A1: 2018
