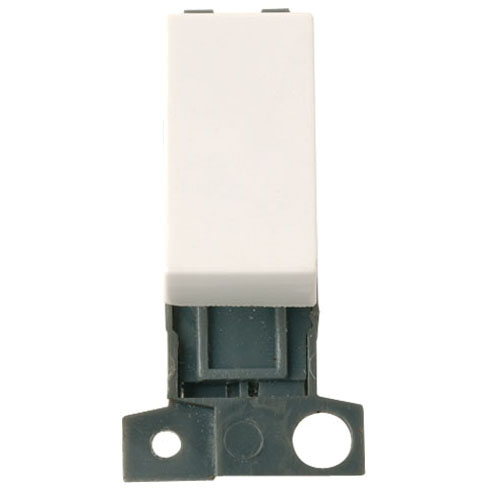

Click Media Grid 10 A Intermediate Switch Module

Click Media Grid 10 A Intermediate Switch Module
Click Media Grid 10 A Intermediate Switch Module




Click Media Grid 10 A Intermediate Switch Module

Price:
£1.80 Each
(£1.50 Ex VAT at 20%)

Website under contruction, I'm sorry but currently we cannot take any orders.

Estimated delivery on this item from: £3.96
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: MD028PW
Product Ref: MD028PW

Additional Information:
Click Media Grid 10 A Intermediate Switch Module

General Information
Dimensions 25mm (W) x 53mm (H) x 20mm (D)
Aperture Dimensions 16mm (W) x 31.5mm (H)
Finish Polar White
Materials Rocker Switch: Urea
Rear Housing: Nylon
Terminals: Brass
Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass
Internal Busbars: Formed Pressed Brass
Maximum Voltage 250V 50Hz
Load Rating 10AX (Suitable For Inductive Loads)
Terminal Size 3.5mmø
Termination Type Screw
Terminal Torque 0.5Nm
Terminal Capacity 4 x 1.5mm2
or 2 x 2.5mm2
Back Box Depth Dependent On Plate Used
Operational Temperature -5°C to +40°C

Standards BS EN 60669-1: 2018
