Click Media Grid Cooker Hood Module

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Please Note:-

We are closed for the festive season, any orders placed during this time will be dispatched upon our return on the 31st December. Please accept our apologies for any inconvenience caused.

Additional Information:

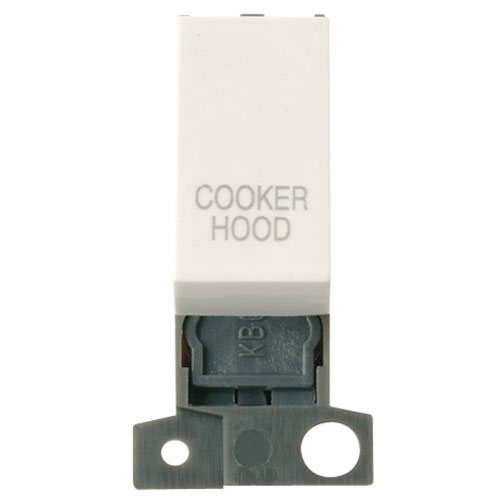

Click Media Grid Cooker Hood Module

General Information
Dimensions 25mm (W) x 53mm (H) x 20mm (D)
Aperture Dimensions 16mm (W) x 31.5mm (H)
Finish Polar White
Materials Rocker Switch: Urea
Rear Housing: Nylon
Terminals: Brass
Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass
Internal Busbars: Formed Pressed Brass
Maximum Voltage 250V 50Hz
Load Rating 13A/10AX (Suitable For Inductive Loads)
Terminal Size 3.5mmø
Termination Type Screw
Terminal Torque 0.5Nm
Terminal Capacity 4 x 1.5mm2
or 2 x 2.5mm2
Product Markings Cooker Hood
Back Box Depth Dependent On Plate Used
Operational Temperature -5°C to +40°C

Standards BS EN 60669-1: 2018
