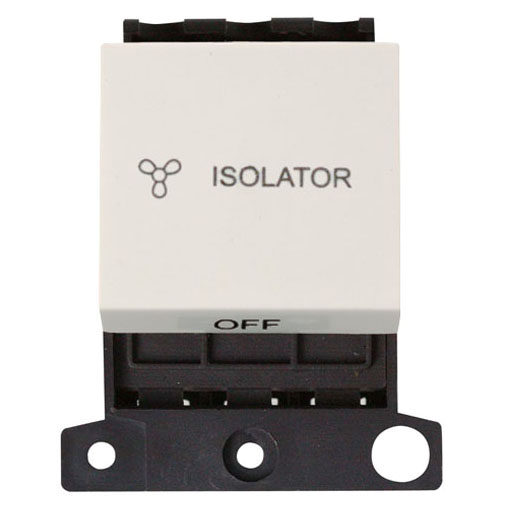

Click Media Grid Fan Switch TP 10 Amp Module

Click Media Grid Fan Switch TP 10 Amp - White
Click Media Grid Fan Switch TP 10 Amp Module - White




Click Media Grid Fan Switch TP 10 Amp Module

Price:
3.72 Each
(3.10 Ex VAT at 20%)

Estimated delivery on this item from: 3.50
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: MD020PW
Product Ref: MD020PW

Additional Information:
Click Media Grid Fan Switch TP 10 Amp Module - White

General Information
Dimensions 41mm (W) x 52.5mm (H) x 22mm (D)
Aperture Dimensions 32mm (W) x 31.5mm (H)
Finish Polar White
Materials Rocker Switch: Urea
Rear Housing: Nylon
Terminals: Brass
Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass
Internal Busbars: Formed Pressed Brass
Maximum Voltage 250V 50Hz
Load Rating 13A/10AX (Suitable For Inductive Loads)
Terminal Size 3.5mmø
Termination Type Screw
Terminal Torque 0.5Nm
Terminal Capacity 4 x 1.5mm2
or 2 x 2.5mm2
Product Markings On, Off Fan Isolator
Back Box Depth Dependent On Plate Used
Operational Temperature -5°C to +40°C

Standards BS EN 60669-1: 2018
