Europa 1 Module Single Phase Type 2 for TT/TN SPD

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:

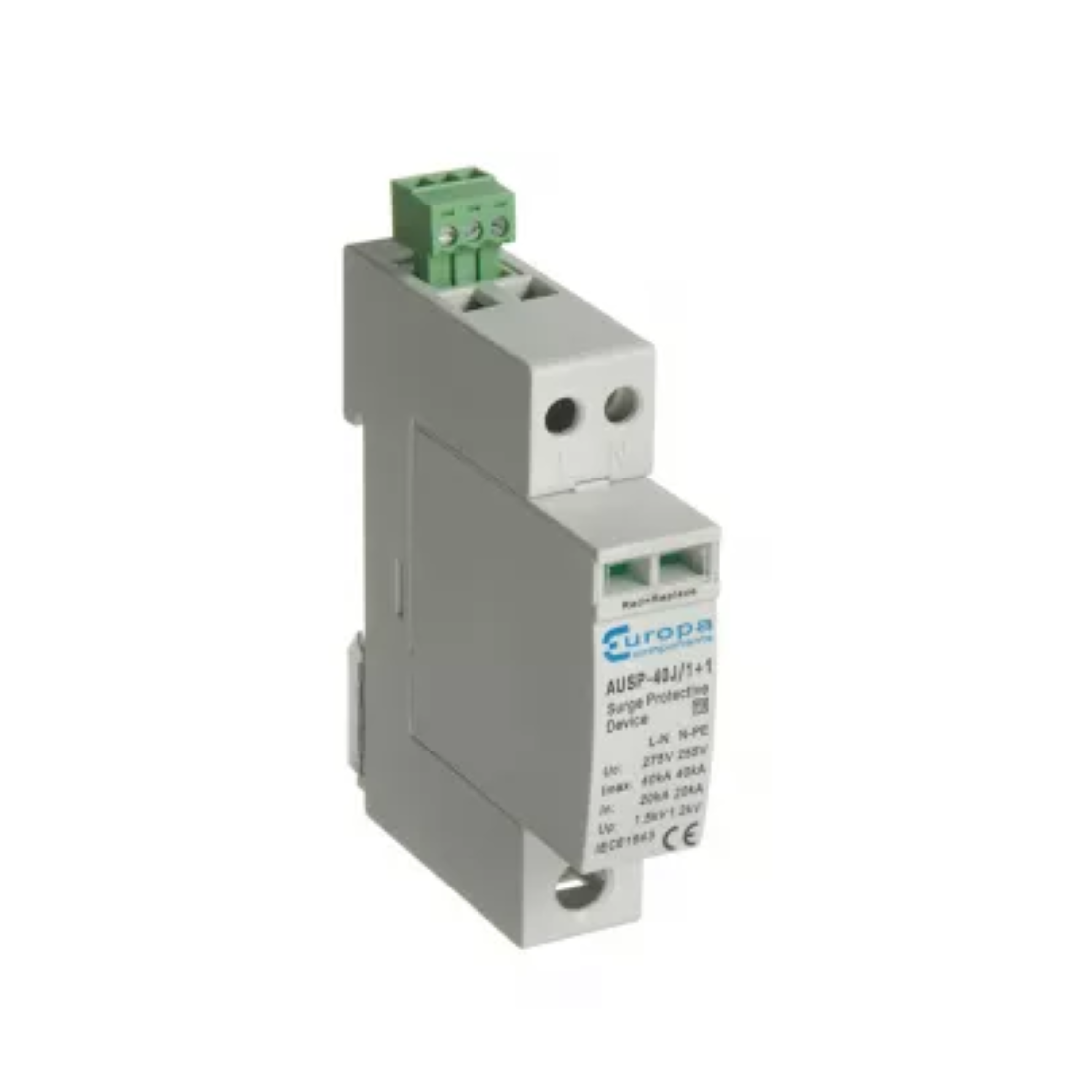

Europa 1 Module Single Phase Type 2 for TT/TN SPD

SENTINEL RANGE Type 2 Surge Arrester
AUSP-40J/1+1
Alarm contact Included

BS / EN Standard BS EN 61643-11
Type Type 2
Earthing System TT/TN
System Voltage 230V
Max. Continuous Operation AC Voltage 275V (L-N) | 255V (N-PE)
Nominal Discharge Current In 20kA
Maximum Discharge Current Imax 40kA
Voltage Protection Level Up 1.5kV (L-N) | 1.2kV
Status Indicator Green (Normal State) | Red (Failure State)
Mounting 35mm DIN Rail
Terminal Capacity 2.5mm² (L/N) | 4mm² (PE)
Operating Temperature ~40 to ~80 °C
Degree of protection IP20
