JSB smoke Detector Base FXN520

JSB smoke Detector Base FXN520

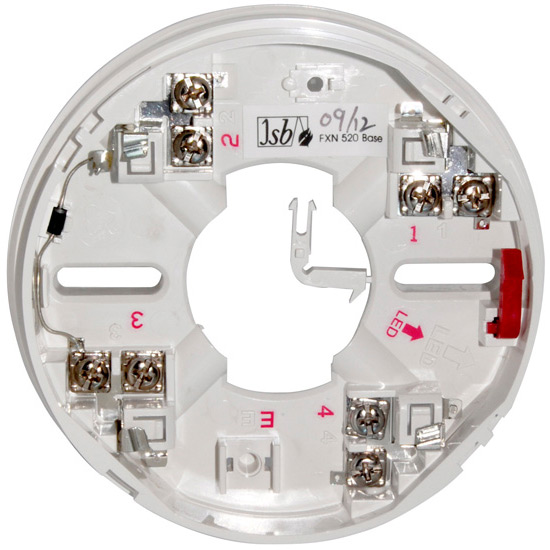

JSB FXN520 White Mounting Base For Conventional Detectors




JSB smoke Detector Base FXN520

Price:
2.64 Each
(2.20 Ex VAT at 20%)

CORONA VIRUS - Websparky is closed until further notice

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: FXN520
Product Ref: JSBFXN520

Additional Information:
JSB FXN520 White Mounting Base For Conventional Detectors

Detector mounting bases are available which have been specifically designed to be compatible with JSB detectors and control panels. The bases have been designed for flexibility, simplicity and speed of installation.

• Separate loop in and loop out terminals
• Stand off fixing feature
• Accepts side entry surface cables
• Selectable detector locking feature

System Overview
• Bases incorporate purpose designed devices to provide fault warning if detector is removed whilst maintaining full zone wiring integrity
• Base has series Schottky diode

User Interface
Heavy duty terminals are provided for each connection, each terminal can accept 2 x 2.5mm cables. Separate loop in and loop out terminals are provided for each connection.

Interface Options
JSB conventional detectors and bases support the use of a remote LED.

Dimensions
Dia (mm) 104 x Depth (mm) 22
