Photocell Kit Complete

 Photocell Kit Complete

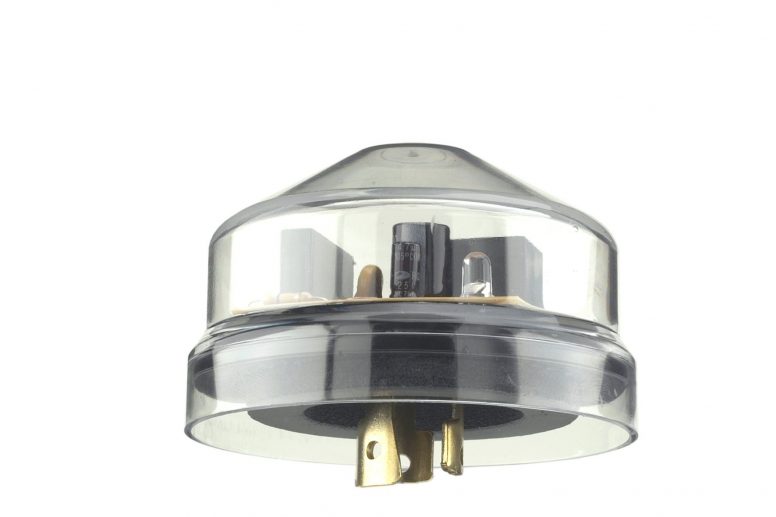

Zodion Photocell Kit Complete



Photocell Kit Complete - view 1Photocell Kit Complete - view 2
Photocell Kit Complete

Price:
8.22 Each
(6.85 Ex VAT at 20%)

CORONA VIRUS - Websparky is closed until further notice

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: WDF3131D,SS4D,photocell kit
Product Ref: PEC1000

Additional Information:
Zodion Photocell Kit Complete

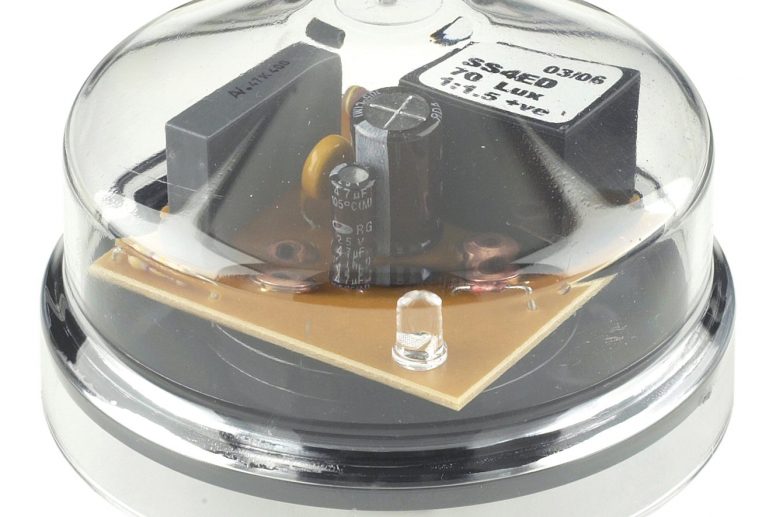

A breakthrough in low cost photocell technology that includes an electro-magnetic relay and a photodiode sensor that reduces burning hours, lowers power consumption and ensures lifetime switching accuracy.

The SS4 series is ideal for use in outdoor lighting systems for commercial, industrial and domestic spaces that require illumination from dusk, until dawn. Ensuring illumination is provided only when needed, the SS4 series gives accurate switching to lighting for schools, carparks, retail spaces and other in the darker months and hours.

IP65

Helps to make outdoor areas safer and more secure in darker hours and months, with accurate light switching
Ideal for: office spaces, car parks, retail spaces, public areas and more.

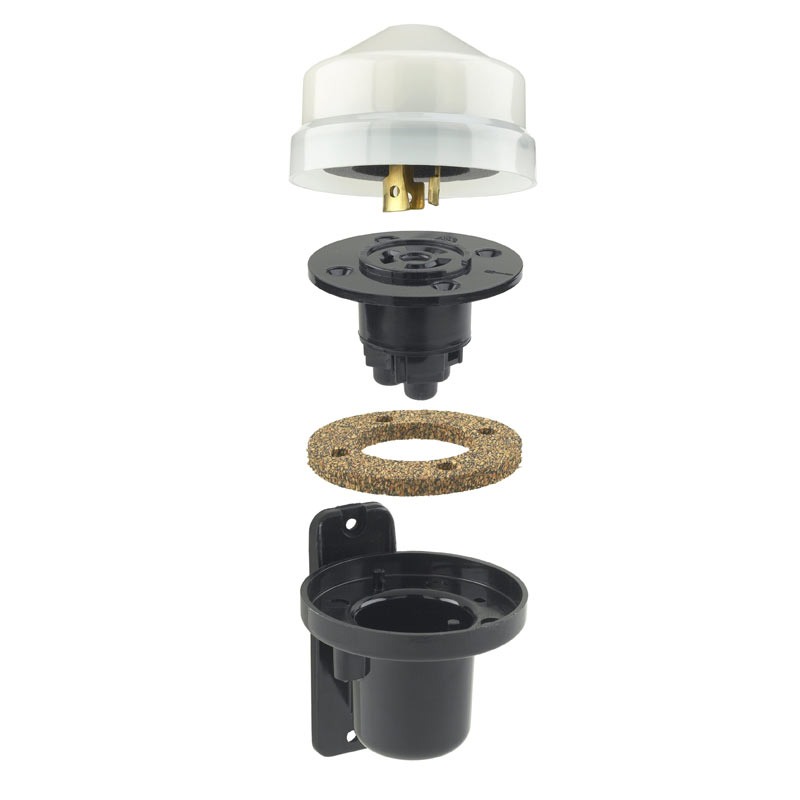

Has a detachable head for quick replacement and maintenance
LED compatible
Provides Lux level switching for outdoor lighting system

Surge Suppression N/A
Fixing (where applicable hole dimensions) NEMA
70 Lux Switch-On Level Yes
55 Lux (on 55 / off 28) Option
35 Lux (on 35 / off 18) Option
Switching ratio 1:1.5 Pos
Capable of unity or negative ratio Yes
Maximum total load for discharge lighting (eg: HPS, MH) (Watts) 500
Maximum total load for incandescent lighting (watts) 1200
Maximum total load for LED lighting (watts)
250
Polycarbonate Enclosure (UV) stabilised) Yes
Consumption in watts <0.5
Sensor Type Photodiode
Sensor Drift Negligible
Max operating ambient temp range -20/+70
IP Rating (installed) IP65
Voltage 198-264
Frequency 50Hz
Electro-magnetic Relay Yes
Location method NEMA

Overall height 121mm
Width ø80mm
M5 holes 80mm between centres
