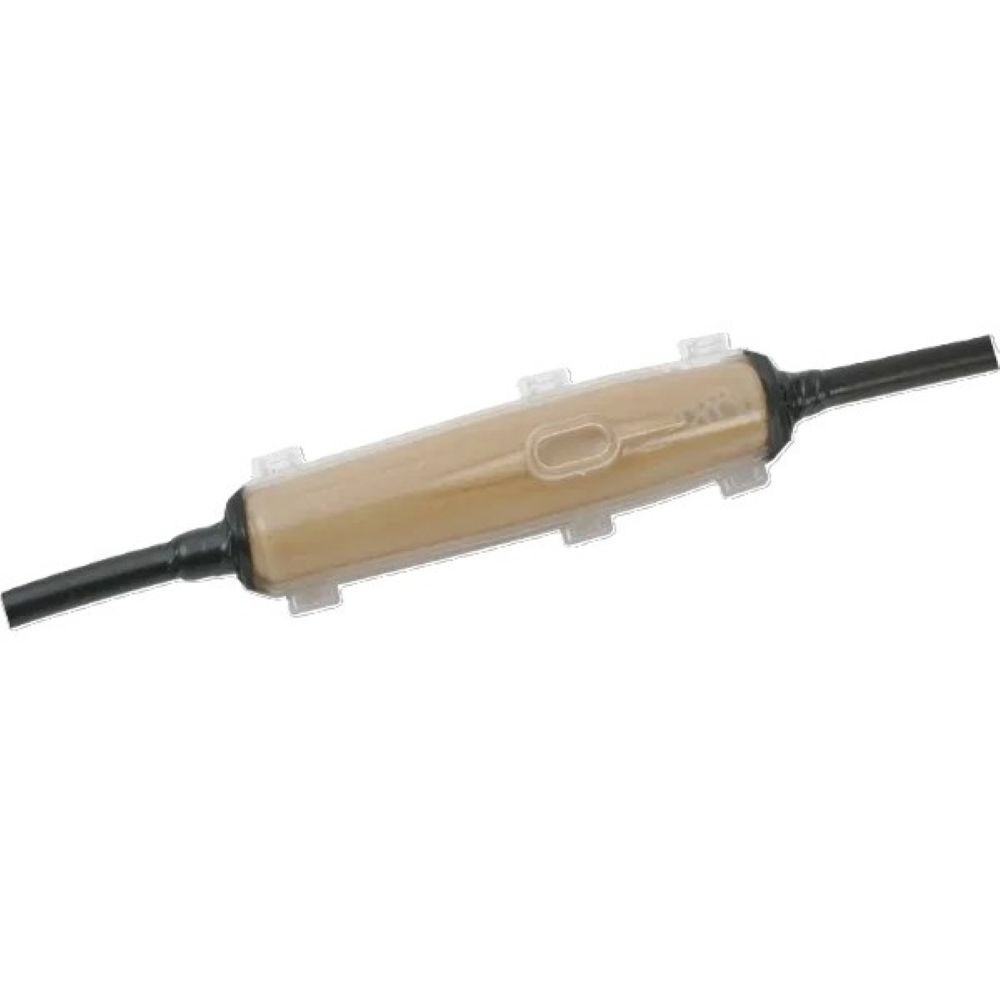

Straight Resin Joint Kit 70-120mm² (3/4 core) Kit, No Connectors Included

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
Straight Resin Joint Kit 70-120mm² (3/4 core) Kit, No Connectors Included

Our straight resin joint kits are ideal for joining cables together where a cable has been damaged or replaced.

Supplied with click together moulds and two part polyurethane resin for insulation making the installation as easy as possible.



Technical Information:
Cable Size Acceptance: 70mm²-120mm² Cross-section (3/4 Core)

Cable Diameter Acceptance: 25mm-45mm Ø

Voltage Rating: 3.6kV

Connectors Included: Connectors sold separately

Suitable for single and multiple polymeric and paper cables both stranded and solid copper/aluminium connectors.

Performance tested to BS6910/HD623 / VDE0278

Technical Data
Application Type, Size and Range
Cable Ø Range (mm) 25 - 45
Cable Size Range (mm²) 70 - 120

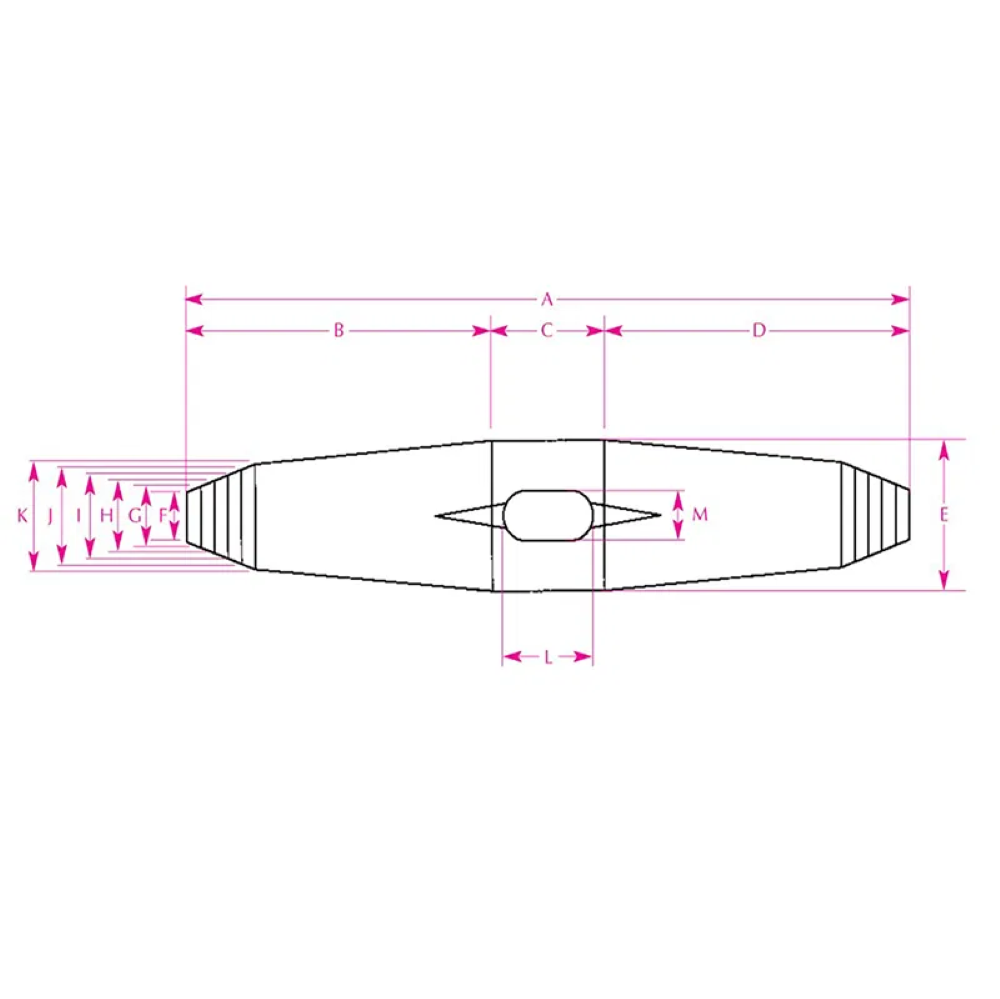

Dimensions
Dimension A (mm) 600
Dimension B (mm) 154
Dimension C (mm) 86
Dimension D (mm) 360
Dimension E (mm) 79
Dimension F (mm) 30
Dimension G (mm) 35
Dimension H (mm) 38
Dimension I (mm) 42
Dimension J (mm) 46
Dimension K (mm) 49
Dimension L (mm) 40
Dimension M (mm) 20
Product Height (mm) 105
Product Length (mm) 590
Product Width (mm) 115
Discernible Features
Insulation FullyInsulated
Electrical Ratings
Voltage Rating (kV) 3.6
Product Specification
Specification BS6910/ HD623/ VDE0278
