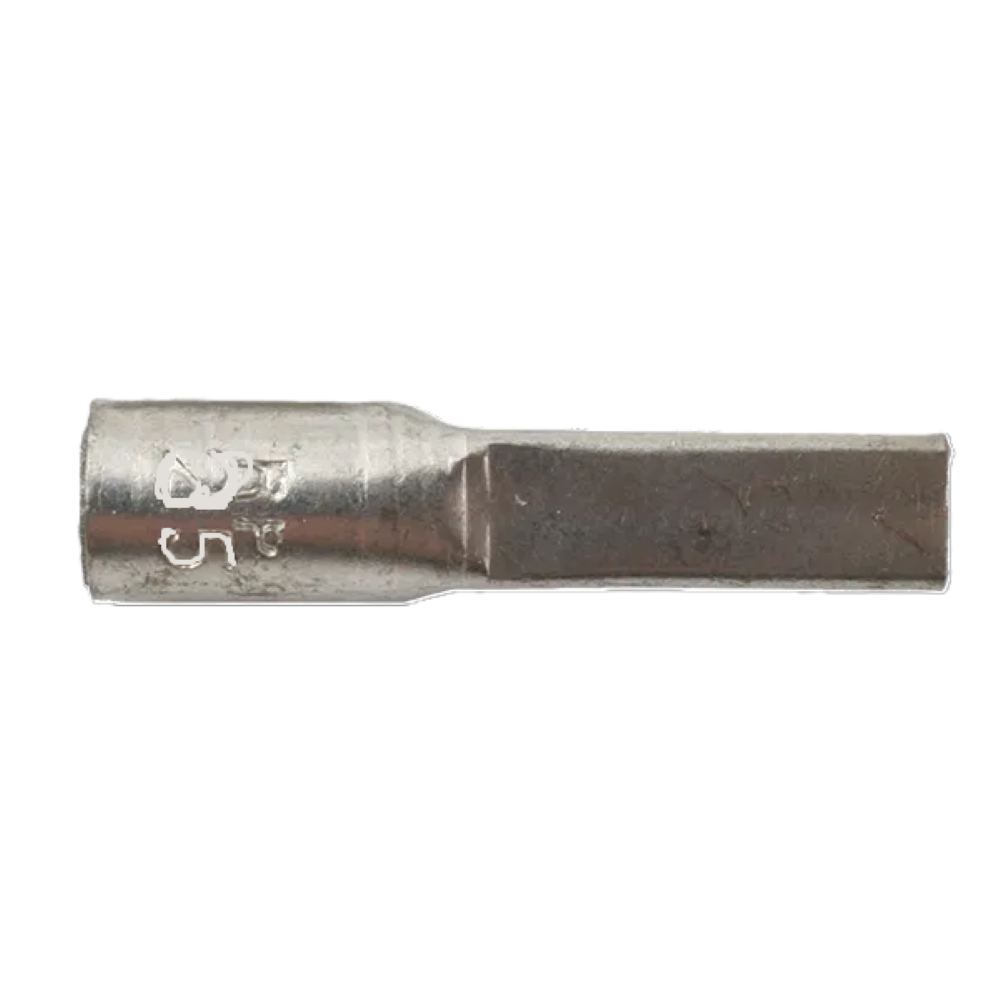

Term Tech Non-Insulated Flat Reducing Pin Terminal 35mm² Cable Entry

The Termination Technology range of uninsulated flat reducing pins are designed to terminate conductors into contact blocks.
Manufactured from copper strip, rolled, brazed and tin plated.

Technical Data

Colour and Material
Material Copper
Plating Material Tin
Application Type, Size and Range
Cable Size (mm²) 35
Number of Cables Accepted 1
Suitable Cable Type Copper Cores

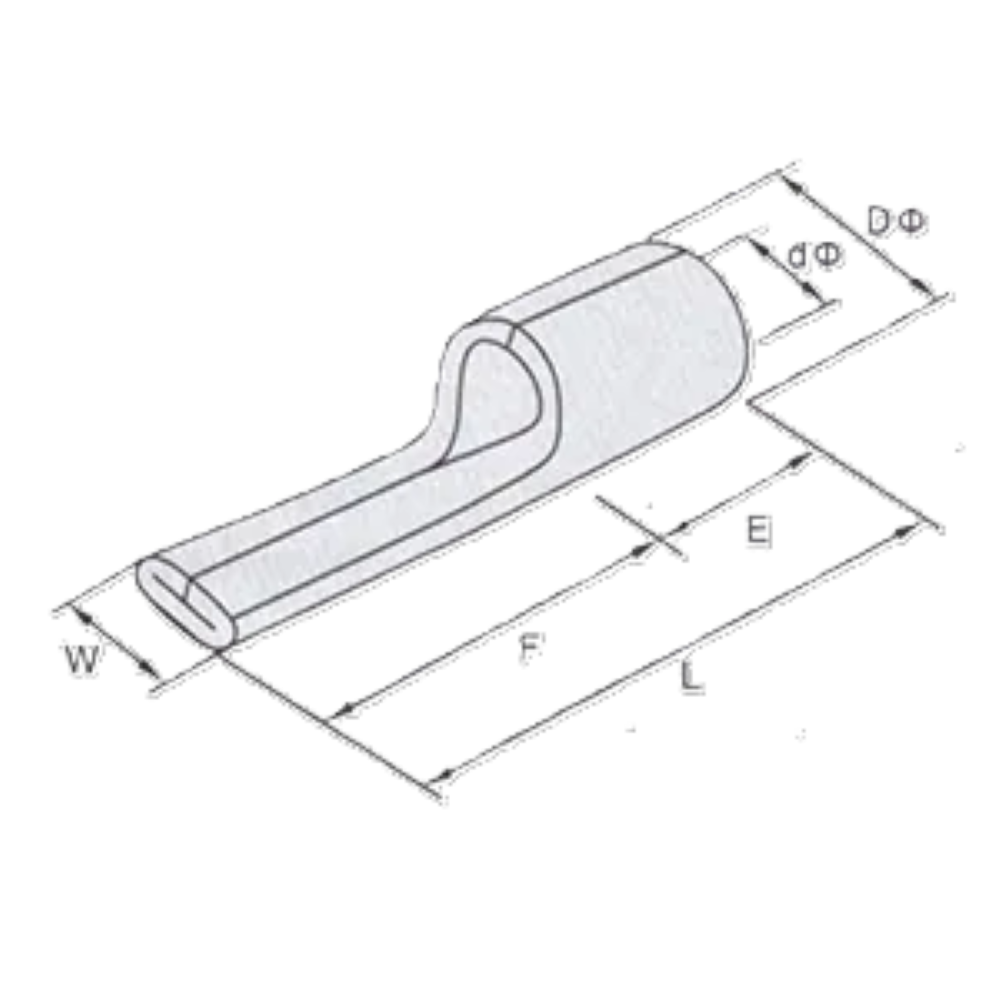

Dimensions
Dimension DØ (mm) 11.8
Dimension E (mm) 16
Dimension F (mm) 24.5
Dimension L (mm) 40.5
Dimension W (mm) 7.8
Product Thickness (mm) 1.5
Electrical Ratings
Max Current (A) 160
