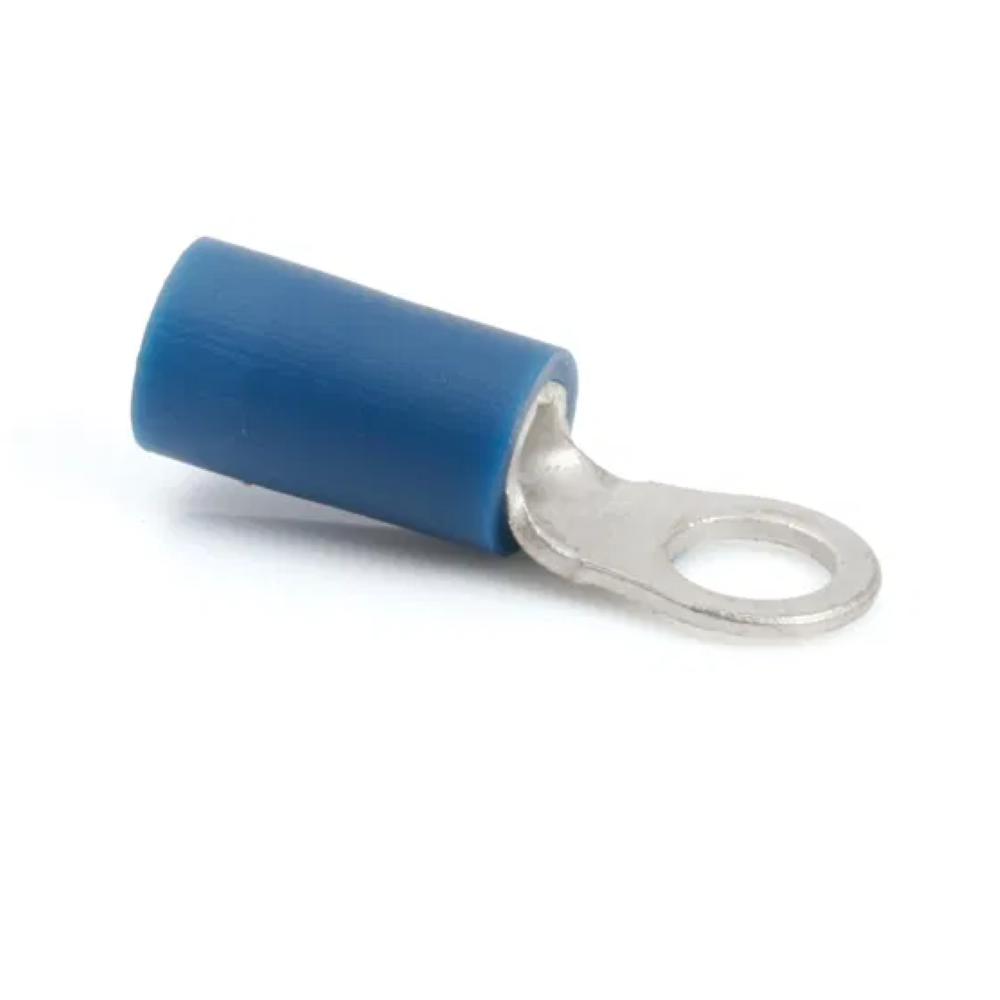

Term Tech Pre-Insulated Terminals Blue Ring 1.5mm²-2.5mm² 3.2mm Hole

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
Term Tech Pre-Insulated Terminals Blue Ring 1.5mm²-2.5mm² Cable
3.2mm Hole

The Termination Technology range of pre-insulated terminals are colour coded to cover 0.5mm² up to 6mm² cable sizes and includes a wide variety of types from rings, forks, pins, blades and more.
Manufactured from oxygen-free high conductivity copper which is electro-tin plated for excellent resistance to corrosion.
PVC insulation with a maximum working temperature of 75°C.

Technical Data
Colour and Material
Material Copper
Halogen Free Yes
Insulation Material PVC
Plating Material Electro-Tin Plating
Application Type, Size and Range
Cable Size Range (mm²) 1.5 - 2.5
Suitable Cable Type Copper Cores
Dimensions
Ring Size (mm) 3.2
Product Specification
UKCA Approved Yes
Temperature and Fire Information
Max Operating Temperature (°C) 75
