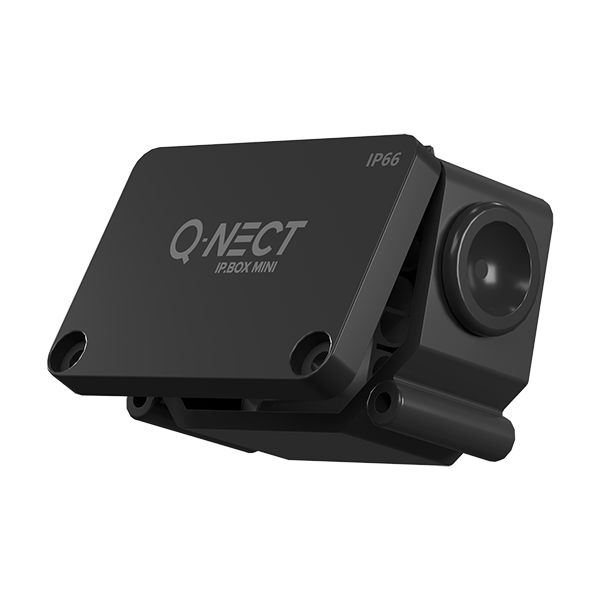

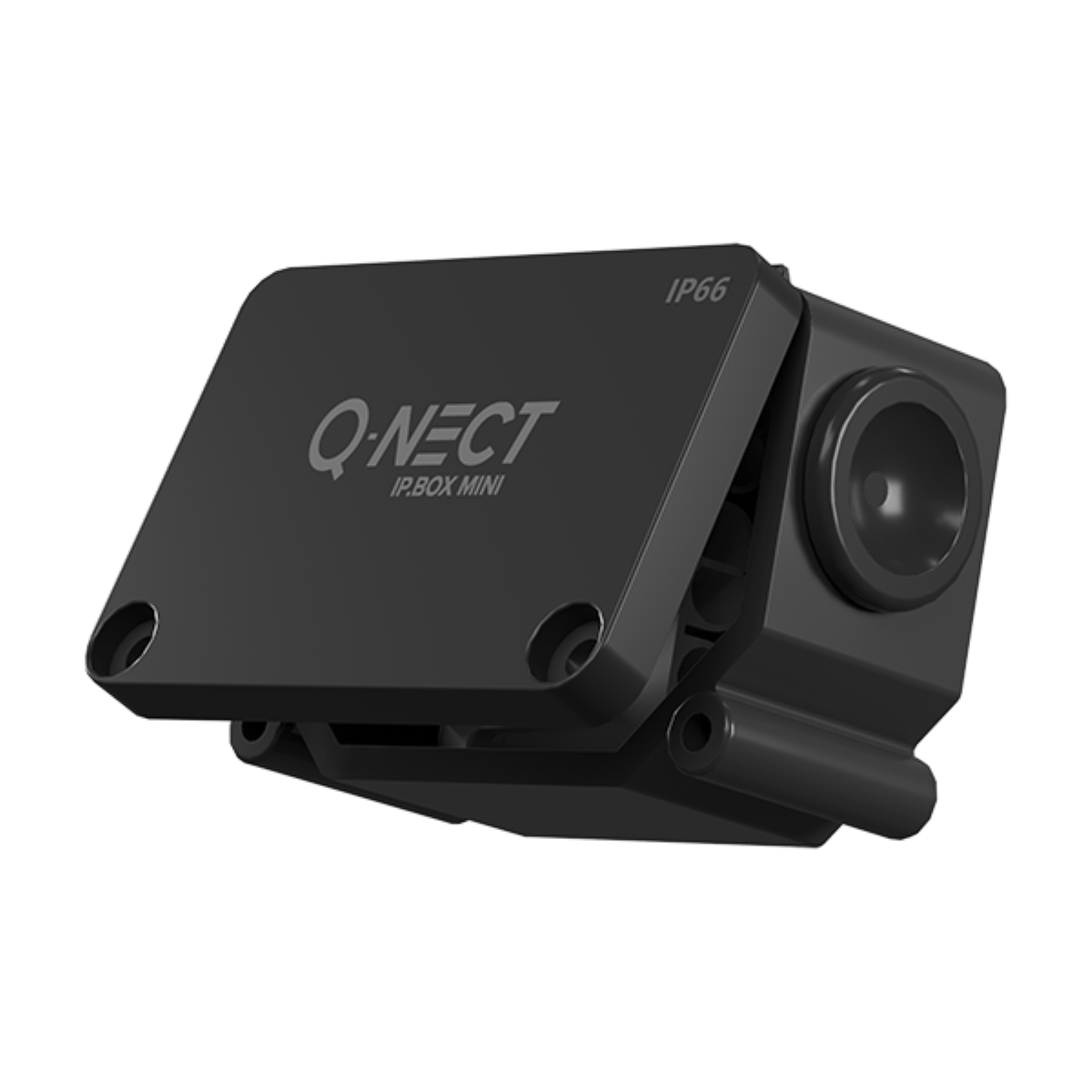

Unicrimp Q-NECT 3 Pole 2 Way 16A IP66 Inline Connection Box

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:
Unicrimp Q-NECT 3 Pole 2 Way 16A IP66 Inline Connection Box

Dimensions
Length (mm) 52
Width (mm) 35.5
Height (mm) 26
Minimum Cable Diameter (mm) 4
Maximum Cable Diameter (mm) 6.5
General Information
Colour Black & Red
Rated Current (A) 16
Tightening Torque (Nm) 2.5
Ingress Protection IP66
Working Temperature (°C) 100
Operational Temperature (°C) -40 to +120
Warranty (Years) 1
Materials
Body Components: Nylon (PA66)
Membranes: Rubber
Additional Information
2 x PG7 inline entries with seals and membranes.
Supplied with 3 pole connector block with push-in terminals.
Standards
BS 6220
BS EN 60670
BS EN 60529:1992+A2:2013 (Sections 13 & 14)
