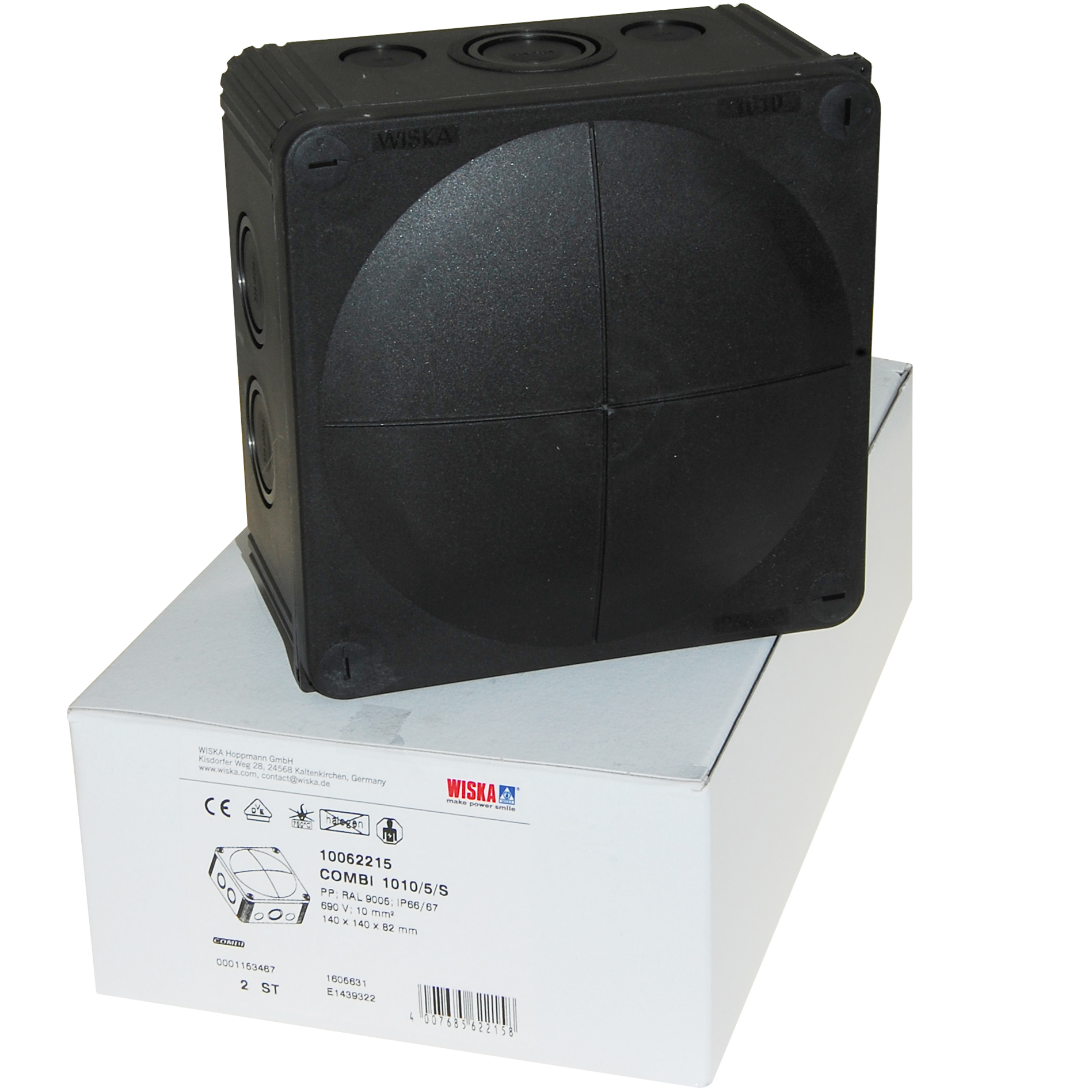

Wiska Combi 1010/5/S Black Weatherproof Junction Box

Wiska Combi 1010/5/S Black Weatherproof Junction Box
Wiska Combi 1010/5/S Black Weatherproof Junction Box
140mm x 140mm x 82mm




Wiska Combi 1010/5/S Black Weatherproof Junction Box

Price:
13.50 Each
(11.25 Ex VAT at 20%)

CORONA VIRUS - Websparky is closed until further notice

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: 10062215
Product Ref: WISKA10062215

Additional Information:
Wiska Combi 1010/5/S Black Weatherproof Junction Box
140mm x 140mm x 82mm

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated current / A (Terminal) 57 A
Terminals/poles 10 mm²
Terminals/poles 5 x 10mm²
Fixing 4 internal openings
Ø cable diameter min 6 mm
Ø cable diameter max 21 mm
External dimensions LxWxH 140 x 140 x 82mm
Using for cable gland Using for cable gland
Product Color RAL 9005
WISKA-Order no. 10062215
Type COMBI® 1010/5/S
Packing unit 2
ETIM-Classification EC002600
Remarks:

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with
ESKV cable gland

Mounting: 4 internal openings outside of the sealing area

Equipment: 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
4 knockouts in the bottom 2x M25/M32; 2x M20/M25
4 captive cover screws
incl. QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
incl. terminal block 5-poles, 10mm²
