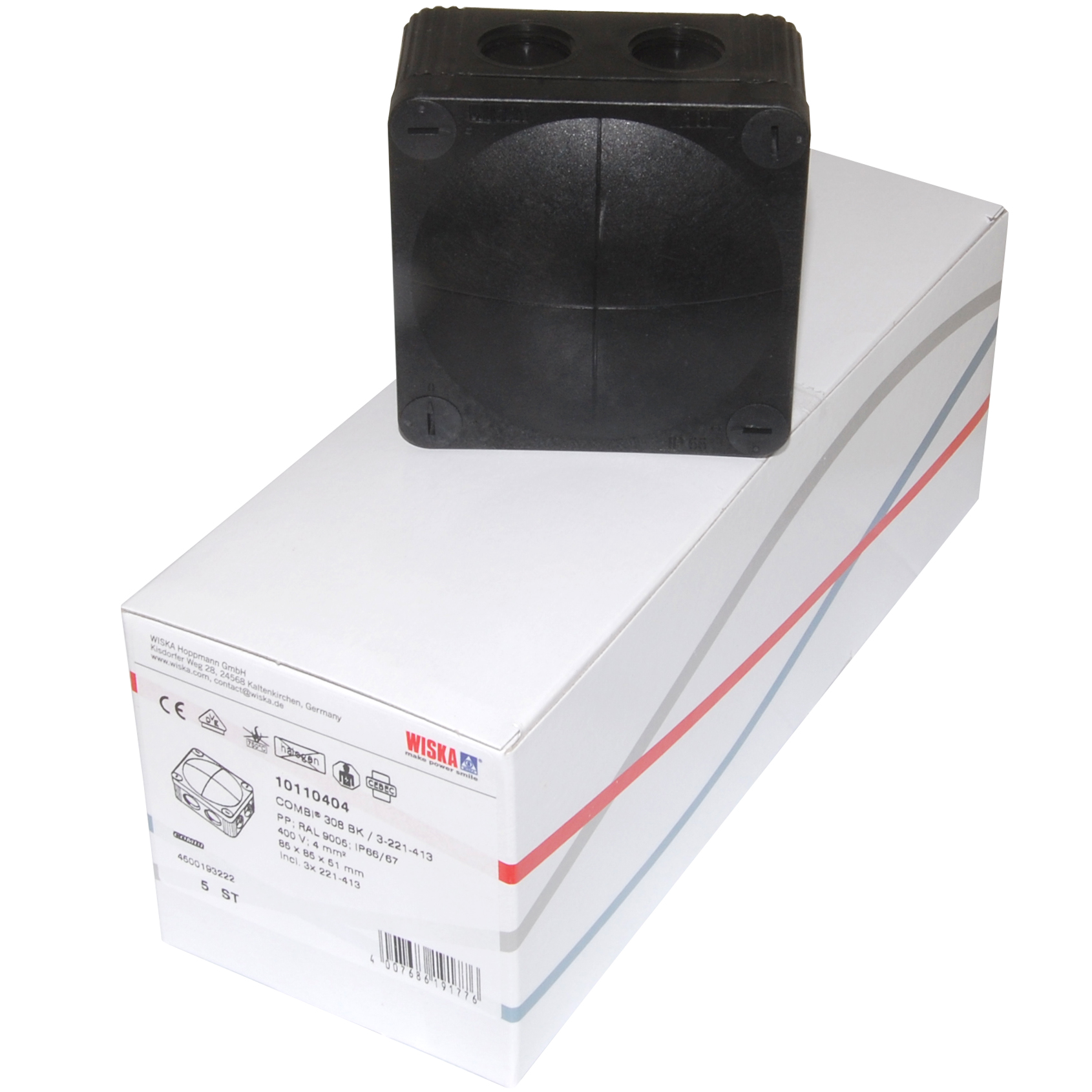

Wiska Combi 308 Black weatherproof Junction Box with Wago

Wiska Combi 308 Black weatherproof Junction Box with Wago
Wiska Combi 308 Black Weatherproof Junction Box
Complete with 3 Wago 3 conductor lever connectors
85mm x 85mm x 51mm




Wiska Combi 308 Black weatherproof Junction Box with Wago - view 1Wiska Combi 308 Black weatherproof Junction Box with Wago - view 2
Wiska Combi 308 Black weatherproof Junction Box with Wago

Price:
3.78 Each
(3.15 Ex VAT at 20%)

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: 10110404, COMBI308BK/WW
Product Ref: WISKA10110404

Additional Information:
Wiska Combi 308 Junction Box with Wago. This high quality dustproof weatherproof IP66 Rated Junction Box.
The box has self sealing punched membranes around the sides which create a weatherproof seal when cables are inserted.

Protection class to EN 60 529: IP 66
Flame protection: glow wire test 750 C acc. to EN 60695-2-11
Temperature range: -30°C up to 100°C, interm. up to approx. 120°C
Voltage: 400 V
Material: Polypropylene, reinforced glass fibre; Sealing: thermoplastic elastomere; seawater-resistant
Terminals/poles: 2,5 mm²
Fixing: With mounting clip or 4 internal openings outside of the sealing area
Equipment: - Domed cover
- 8 elastic self-sealing membranes for cable entry without mechanical devices
- 8 integrated M 20 threads, no locknuts necessary
- 4 captive quick-release lid screws
- .../5 = incl. screw terminal 2,5 mm², 5-pole
.../MK5 = incl. screw terminal 2,5 mm², 5-pole + E
Size : 85mm x 85mm x 51mm
