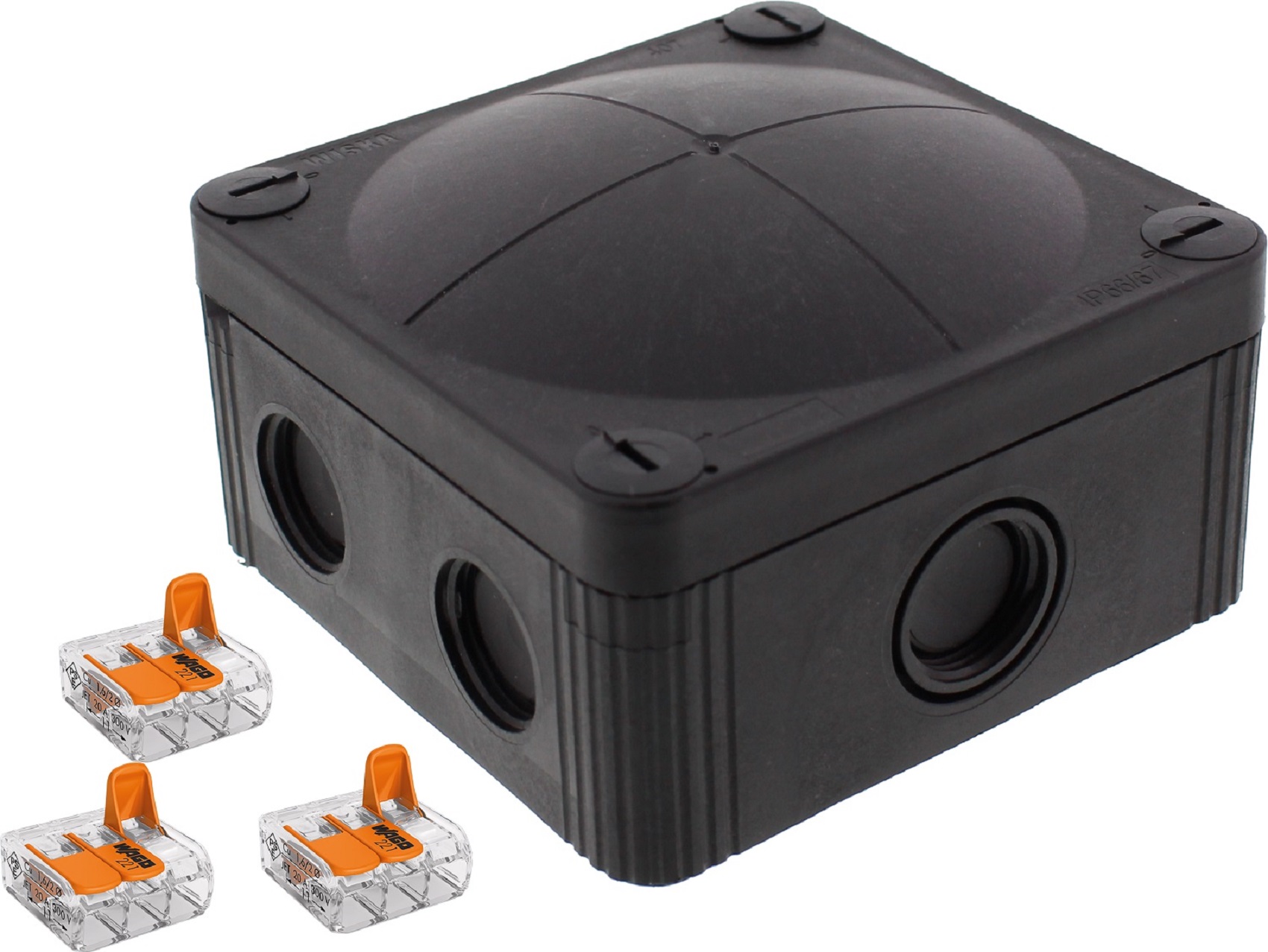

Wiska Combi 407/WW/3221/S Black Weatherproof Junction Box

Wiska Combi 407 Black Weatherproof Junction Box
Wiska Combi 407 Black Weatherproof Junction Box

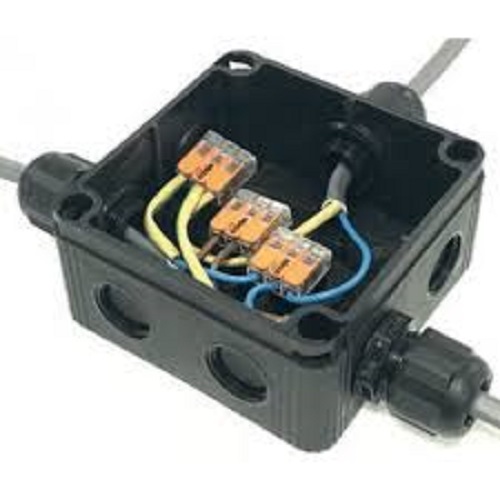

Complete with 3 Wago 3 conductor lever connectors
95x95x69



Wiska Combi 407/WW/3221/S Black Weatherproof Junction Box - view 1Wiska Combi 407/WW/3221/S Black Weatherproof Junction Box - view 2
Wiska Combi 407/WW/3221/S Black Weatherproof Junction Box

Price:
4.20 Each
(3.50 Ex VAT at 20%)

CORONA VIRUS - Websparky is closed until further notice

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: 10109673
Product Ref: WISKA10109673

Additional Information:
Wiska Combi 407 Black Weatherproof Junction Box

Complete with 3 Wago 3 conductor lever connectors
Dimensions - 95x95x69

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 450 V
Rated current / A (Terminal) 32 A
Terminals/poles 4 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 95 x 95 x 60mm
Type of cable gland M 25 x 1,5, M 20 x 1,5
Using for cable gland COMBI_407
Product Color RAL 9005
Type COMBI® 407/WW/3221/B
Packing unit 1
ETIM-Classification EC002600

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
