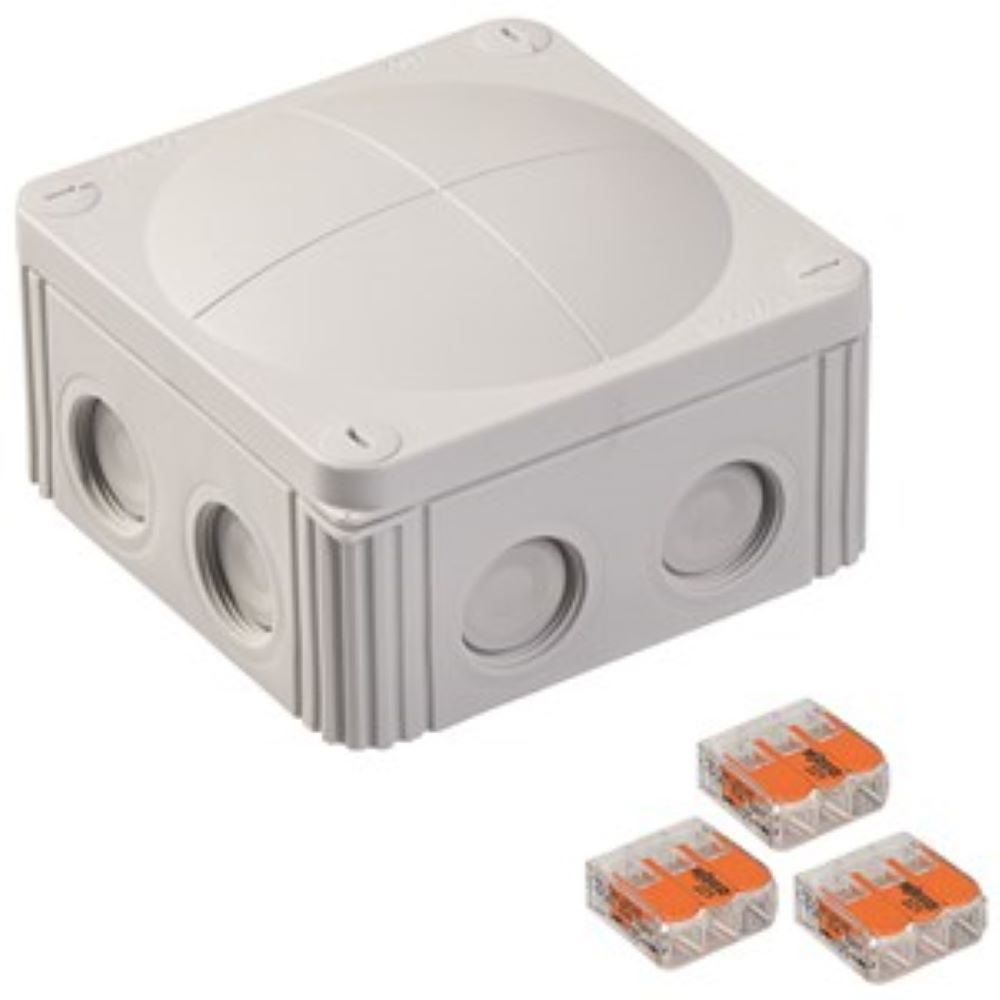

Wiska Combi 607/5 Grey Weatherproof Junction Box

Wiska Combi 607/5 Grey Weatherproof Junction Box
Wiska Combi 607/5 Grey Weatherproof Junction Box
110 x 110 x 66mm




Wiska Combi 607/5 Grey Weatherproof Junction Box

Price:
5.90 Each
(4.92 Ex VAT at 20%)

CORONA VIRUS - Websparky is closed until further notice

Estimated delivery on this item from: 3.30
Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.


MPN: 10061778
Product Ref: 10061778

Additional Information:
Wiska Combi 607/5 Grey Weatherproof Junction Box
110 x 110 x 66mm

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated current / A (Terminal) 41 A
Terminals/poles 6 mm²
Terminals/poles 5 x 6mm²
Fixing 4 internal openings
Ø cable diameter min 5,2 mm
Ø cable diameter max 17 mm

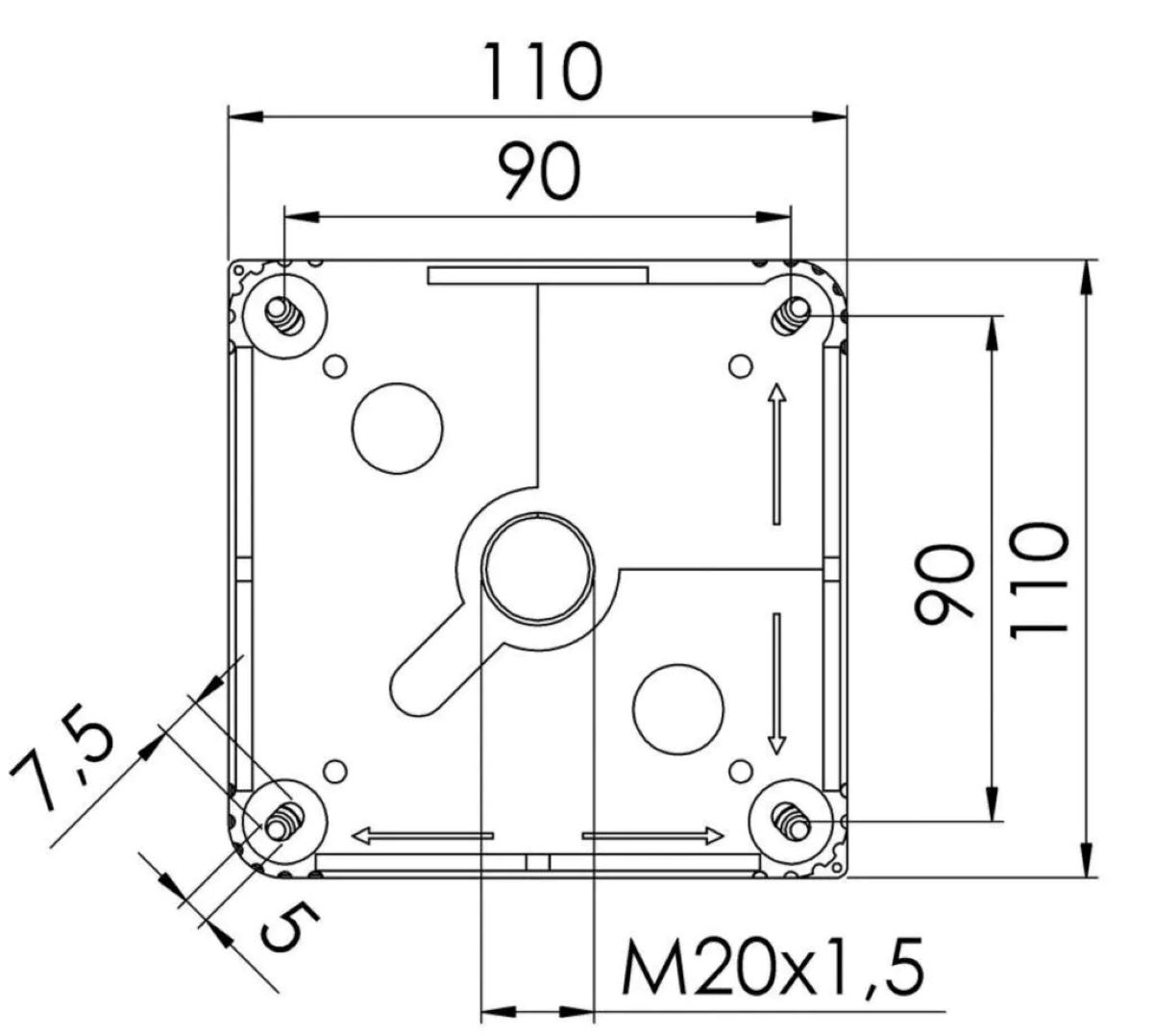

External dimensions LxWxH 110 x 110 x 66 mm
Using for cable gland
Product Color RAL 7035
WISKA-Order no. 10061778
Type COMBI® 607/5 2x KRM25/20
Packing unit 3
ETIM-Classification EC002600
IP66: using the membrane entry
Ø cable: 5,2 - 17 mm
IP67: using the threaded entry together with ESKV cable gland
Ø cable: 9,0 - 17 mm
Mounting:
- 4 internal openings outside of the sealing area
Equipment:
- 7 elastic, self-sealing puncture-membranes for cable entry on the side and 3 on the bottom

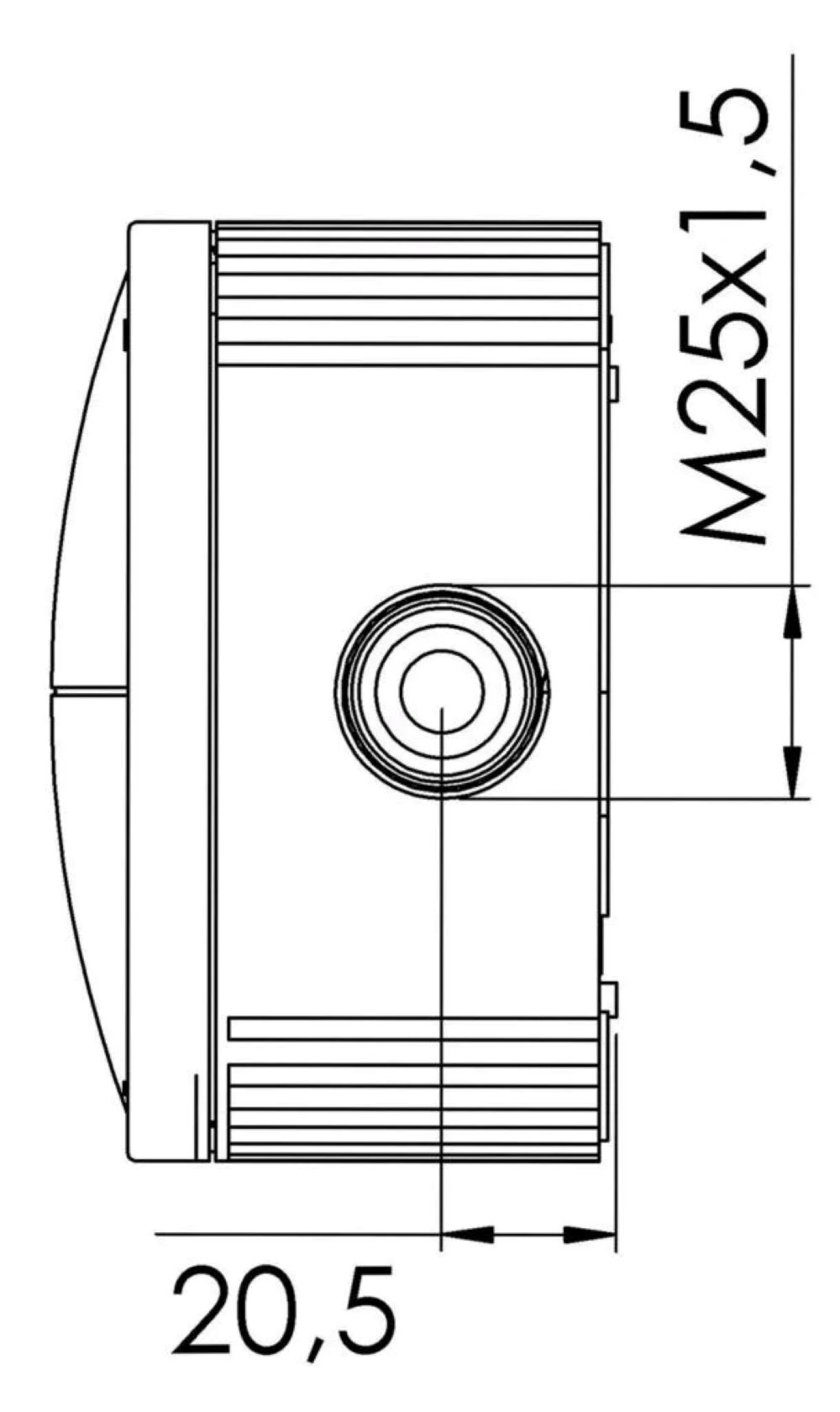

- 7 integrated M25 thread for mounting without lock nut
- 4 captive cover screws
- terminal block 5-poles, 6mm²
- 2 reduction adaptors KRM 25/20
