Wiska Sprint M40 IP68 Tails Gland Kit

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Please Note:-

We are closed for the festive season, any orders placed during this time will be dispatched upon our return on the 31st December. Please accept our apologies for any inconvenience caused.

Additional Information:
Wiska Sprint M40 IP68 Tails Gland Kit
Material cable gland Polyamide
Material sealing gasket EPDM
Temp. range min -40 °C
Temp. range max 100 °C
Protection class IP66, IP68 (5 bar 30 min)
Product Color RAL 7035
Thread type M
Ø Connection thread D 40
Lead 1,5
Length screw-in thread L 12 mm
Key width SW 46 mm
Total length TL 52 mm - 65 mm
Glow wire test 750 °C
Type of cable anchorage A
Install. torques fitting 20 N/m
Install. torques cap nut 20 N/m
Impact category 4
Order no. RAL 7035 10106245
Type TKE/P 40/RD
Packing unit 1
ETIM-Classification EC000441
Description:

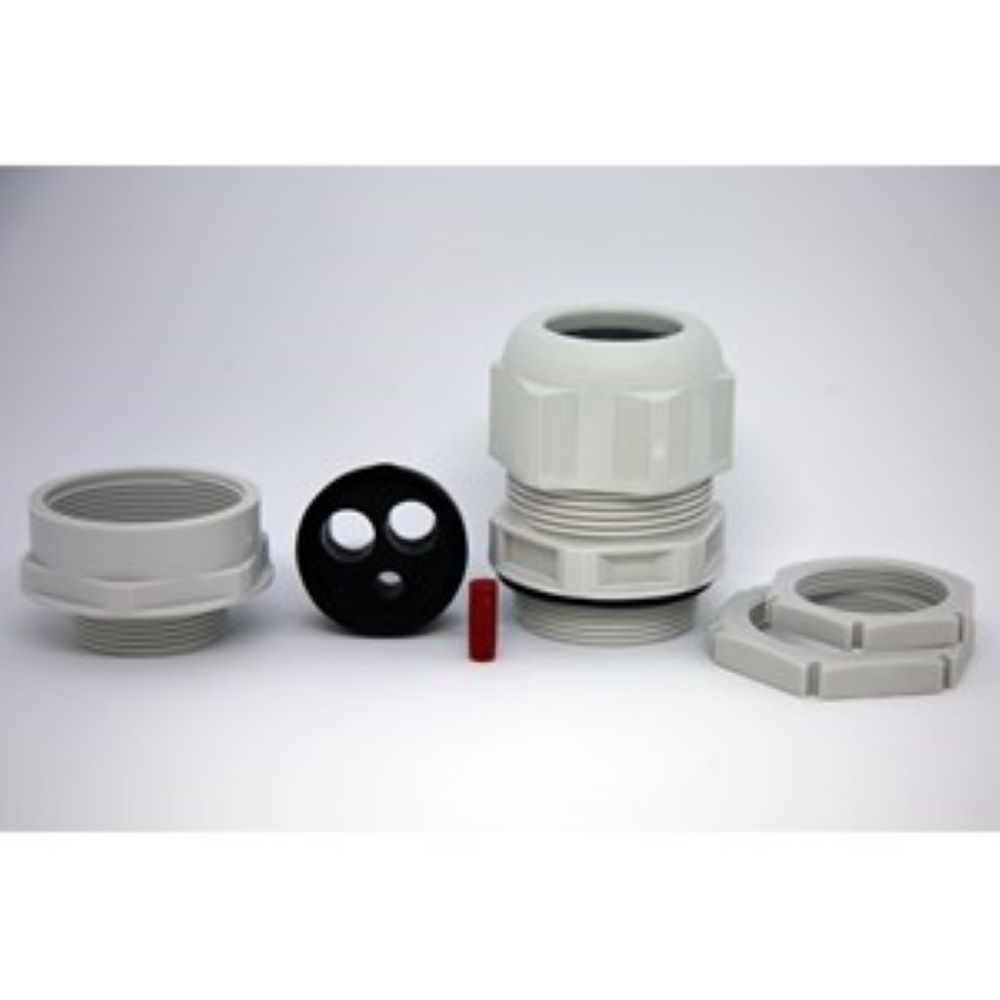

UNIVERSAL OPTION Suitable for 32 or 40 mm. IP68 Plastic cable gland. ESKV 40/ MFD 2 x 11mm Tails and 1 x 6mm Earth, 1 KEM Adaptor 40 - 32mm. Kit contains multiple sealing insert, locknut, blanking insert and KEM reduce.
