Zodion Minature Photocell

Estimated delivery on this item from: £3.96

Final delivery charges are affected by quantities chosen and delivery service selected.
Estimated price above assumes "2nd class delivery" service selected.

Additional Information:

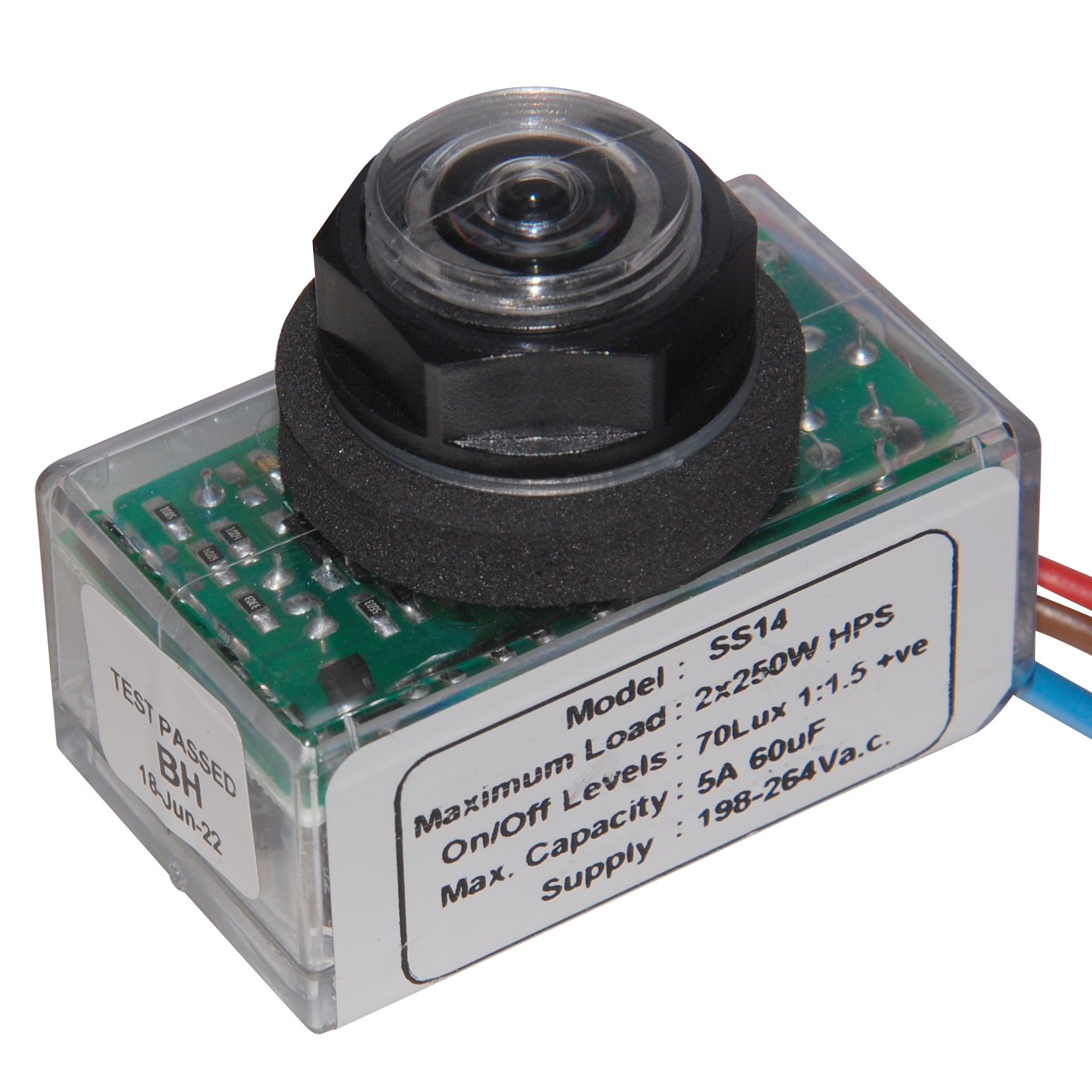

Zodion Minature Photocell

SS14 is a positive ratio, miniature photocell ideal for controlling outdoor lighting in commercial, industrial, and domestic applications.
Also available is Remote version (SS14-R), which features a remote sensor head for applications where space is restricted.

Overview:
• Highly effective miniature photocell
• Designed for commercial applications requiring positive ratio switching
• Utilises a special sensor to provide reduced sensitivity to discharge light sources
• Remote option available which has the photodiode separated from the main circuitry for tight installation restrictions or low-level installations where human interaction must be avoided.

Features:
• Includes an Electro Magnetic Relay
• Predictive load transfer to minimise switching stresses
• Optical sensor for long term accuracy

Max Load 2 x 250w HPS
On/Off Levels 70 Lux
Max Capacity 5A 60uF
Supply 198-264Va.c.
